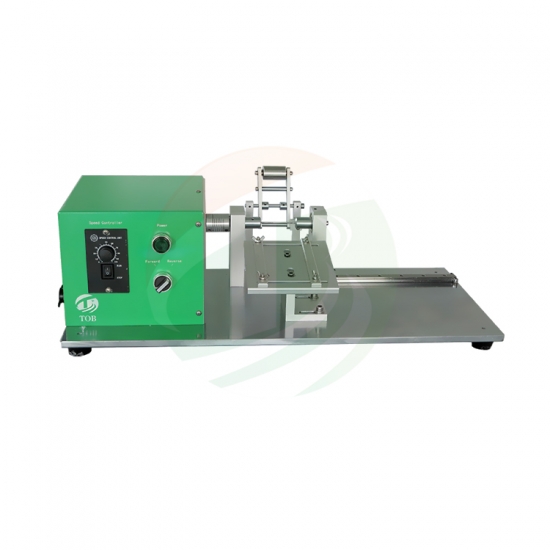

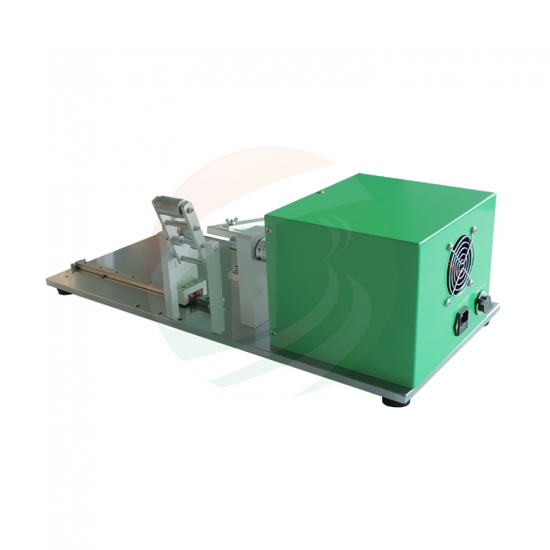

Semi-Automatic Winding Machine For Pouch Cell

Semi-Automatic Winding Machine For Pouch Cell
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-JR135-P
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

Semi-Automatic Winding Machine for Electrodes of Pouch Cell



SPECIFICATIONS


TOB-JR135-Prismatic semi-automatic winder machineis used for winding battery anode/cathode electrodes with separator together in the research of Li-ion Pouch cell batteries.


Model

Semi-Automatic Winding Machine TOB-JR135-P

Working Voltage

AC110V/220V, 50/60HZ

Power

40W

Warranty

One Year limited warranty with lifetime support

Winding Speed

0 - 170 RPM Adjustable

Winding blade

The winding width depends on the width of the winding blade

Customized square winding blade according to battery model

Winding Mode

Switchable between clockwise and counterclockwise

Output

70-100EA/h, according to battery size and maunal

Product Dimensions

(L*W*H)

360*310*280mm

Net weight

About 20kg (45 lbs)

Application Notes

This machine can be used for prismatic battery with square winding shaft,

and you can also choose the round winding shaft for cylinder cell core winding,

We will supply with the suitable winding accessories according to your battery model


PRODUCT DISPLAY


Battery Winding Machine

Battery Winding Machine

Semi-Automatic Winding Machine

Semi-Automatic Winding Machine

Semi-Automatic Winding Machine

Winding machine winding process
