O-ring Vacuum Seal Flange Window Inner Glove Box

The flange window is cut into an integral rectangular ring with an integral thick plate, which is high strength and resistant to impact extrusion deformation and can open sealing grooves.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-GB1220-N
  • order(moq):

    1
  • Payment:

    L/C, T/T
  • product origin:

    China
Product Detail

O-ring Vacuum Seal Flange Window Inner Glove Box


Technical indicators


Water and oxygen content<0.1PPM

Leakage rate<0.001%vol/h

The working gas is nitrogen, argon and other inert gases. The regeneration gas is a mixture of inert gas and hydrogen (hydrogen 5-10%)



Flange Window Glove Box

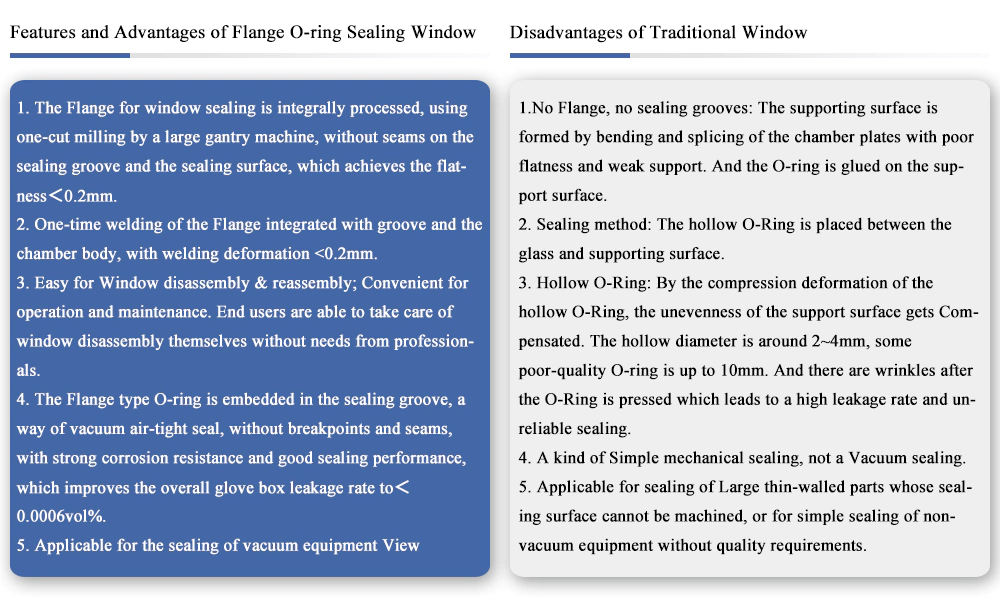

Traditional window VS O-ring sealing flange window


Flange Window Glove Box

Flange Window Glove Box


TOB-GB1220-N Single Station Glove Box with Flange window


Single station, single operation,integrated with a single column purification unit,PLC touch screen operation control, vacuum pump, bracket, a closed box, with operating surface tilt and detachable safety glass front window. Under normal conditions, namely the 20℃ constant temperature, a standard atmosphere, inert gas 99.999%, water and oxygen index less than 0.1 ppm.


Item

Parameter

Main parameter

Water/ oxygen index: Less than 0.1ppm

Leakage rate : 0.001vol%/h

Glove box

Box

Box size: (L*W*H)=1220×750×900mm

Box material: stainless steel 304, thickness 3mm

Inner surface: stainless steel wire drawing treatment

Outside surface: paint, white

Front window

Tilt windows, transparent tempered safety glass, thickness 8 mm

The glass window adopts a solid O-ring (vacuum sealing method) flange window structure.

Glove ports

The material is polyoxymethylene, O-ring seal, self-lubricating performance, easy to maintain, and good sealing performance

Gloves

Butyl rubber, thickness 0.4mm, diameter 8", length 32"

Filter:

0.3 microns, a gas inlet and a gas outlet

Shelf

Stainless steel, 2-3Layers

Lighting

LED lights, installed in front of each glass window

Connector

Standby interface 4pcs, DN 40 KF, Power interface 1pc (220V)

Bigger antechamber

Chamber

Size: diameter 360mm, length 600mm

Material: 304 stainless steel

Surface: inner surface wire drawing process, outer surface painting (white)

Accessory

Sliding tray: 304 stainless steel

Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism

Pressure gauge: Analog display

Control

Solenoid valve touch screen automatic operation

Smaller antechamber

Chamber

Size: diameter 150mm, length 300mm (100mm length into the glove box)

Material: 304 stainless steel

Surface: inner: wire drawing process, outer: painting (white)

Accessory

Standard configuration: small cabin tray

Door: double door, thread lock

Pressure gauge: Analog display

Control

Manual valve manual operation

Gas purification circulation system

Purification column

Function: gas sealed, remove water, remove oxygen

Container material: 304 stainless steel

Purification materials: copper catalyst: 5kg, molecular sieve: 5 kg

Purification capacity: oxygen: 60L, water: 2Kg

Water and oxygen indicators: less than 1ppm

Circulatory system

Working gas: nitrogen, argon,helium

Recycling capacity: integrated fan flow 90m³ / h, install frequency conversion

Regeneration

Operation: PLC automatically controls the regeneration process

Regeneration gas: working gas mixed with hydrogen gas, (hydrogen 5-10%)

Vacuum pump

12m³ / h, rotary vane pump, with oil mist filter, air vibration control

Valves

Main valve: DN 40 KF, electrically operated angle valve

Control valve: electromagnetic integrated valve

Control System

Function

Including self-diagnosis, power-off self-starting characteristics, with pressure control and adaptive function

Automatic control, cycle control, password protection

Pressure control

PLC Auto control, cabinet working pressure +/- 15mbar can be set freely, beyond +/- 16mbar system automatic protection

Pedal

Control the box pressure, easy to operate boost and buck

Display system

Using Siemens PLC touch screen, display running status, box pressure, system records etc

Vacuum system control

Vacuum pump, can be manually or through the PLC to start, flow 12m³/h, vacuum of the transition chamber, and keep the box pressure balance, vacuum pump limit vacuum ≤ 2x10-1pa

 Basic

components

Water analyzer

Measuring range: 0~500ppm platinum electrode structure (P2O5 structure, can reach the factory level by simple cleaning), a wide range of applications, especially for users such as lithium battery manufacturing and metal organic, can be restored to the initial state through the cleaning and regeneration process, avoiding one-time pollution and scrapping The problem.

Oxygen analyzer

Measuring range: 0 ~ 1000ppm

The use of ZrO2 sensor, to avoid the fuel cell life is short, and avoid the problem of it can not be exposed in the air

Quick change organic solvent adsorb-er

Size: diameter 238mm, height 407mm,3mm thickness304 stainless steel Filled with 10kg of activated carbon. Connected with the main circulation pipeline, the circulating gas can first flow through the organic solvent adsorb-er device to absorb the organic solvent in the gas. Quick and convenient replacement of adsorbent materials. After replacing the activated carbon, the adsorption column can be vacuumed to eliminate air and avoid contaminating the high-purity atmosphere inside the box.
