New Product Introduction--Battery Electrode Die Cutter Machine

Jan 20,2017

New Product Introduction

----Battery Electrode Die Cutter Machine

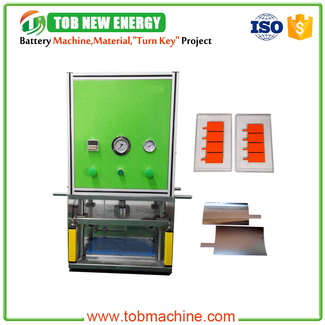

TOB-MQ300 Semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

Main features:

1. It is convenient and fast to replace the cutting die;

2. The cutting die has long life, normal use of≥ 30,000times;

3. No flash, powder, indentation and other quality defects;

4. Between the manual and fully automatic, the efficiency of up to 800 ~ 2000pieces / hour;

5. Using four guide column structure, sliding up and down smooth, high precision;

6. It is safety to use with light curtain and cover protection.

7. Easy to operate, safe and reliable, small size.

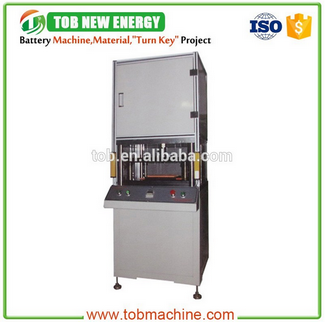

This Die Cutter Machine has max die dimension with 200*300mm, if you need larger size, please choose the TOB-JD-500 model with max die size up to 500*500mm.

XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD. is a professional battery machine equipment manufacturer with 15 years’ experience. Our company provides high-quality products and the most professional technical services. We are looking forward to cooperating with you!
