Manual Winding Machine For 18650 Battery

Jan 20,2017

Manual Winding Machine For 18650 Battery

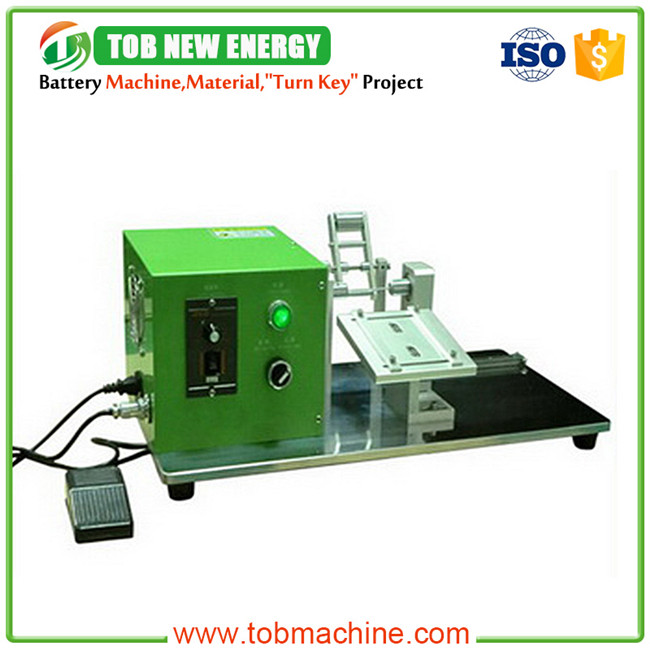

TOB-JR135-Cylinder manual winding machine is used for winding battery anode/cathode electrodes with separator together in the lab research of Li-ion cylinder batteries.

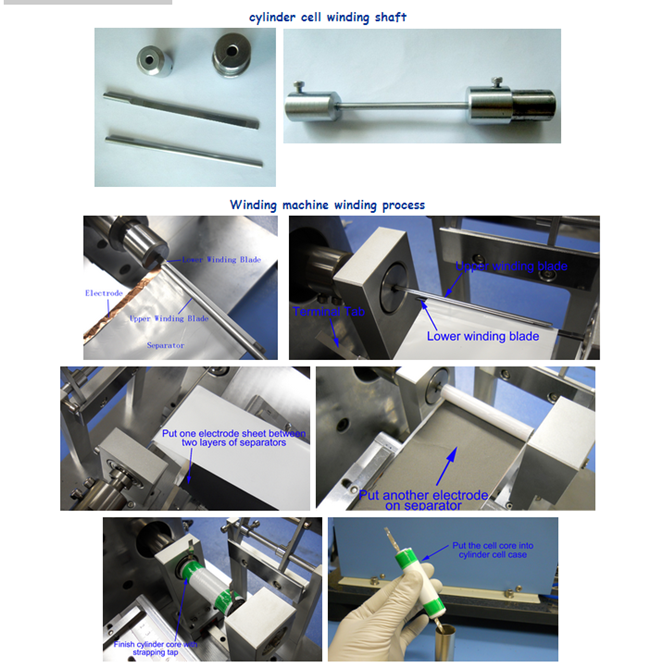

This machine not only can be used for cylinder battery with round winding haft, and you can also choose the square winding shaft for pouch cell core winding, We will supply with

the suitable winding accessories according to your battery model.

It main feature as below:

1.Working Voltage:AC110V/220V, 50/60HZ

2.Power:40W

3.Warranty:One Year limited warranty with lifetime support

4.Winding Speed:0 - 170 RPM Adjustable

5.Winding Shaft:Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery

core,other sizes like 26650 and 32650 are available upon request

6.Winding Mode:Switchable between clockwise and counterclockwise

7.Output:70-100EA/h, according to battery size and maunal

8.Product Dimensions(L*W*H):360*310*280mm

9.Net weight:About 20kg (45 lbs)

On 16,Jan.One of my old customers in Finland gave us an order for this manual wind machine.and also some other equipment and materials for lithium battery lab research.such as:battery electrode punching machine,Ni/Al tab,18650 battery casings,Strapping tape for finishing the cylinder and so on.

   From TOB,you can buy all battery producing and lab researching machine/material,you can get professional technical support .Our customer whom has cooperated with us always said :it’s trusty to work with TOB that not only provide complete battery research goods but also provide professional technical support.

 If you have any needing,please contact me with no hesitate:

Contact person: Ailsa

Skype:tob.ailsa@tobmachine.com

E-mail: tob.ailsa@tobmachine.com
