Lithium-ion Pouch Cell Production Line Building Project in Europe

Jun 28,2019

Project Name: Lithium-ion Pouch Cell Production Line Building Project in Europe


Description: Xiamen TOB New Energy Technology Co., Ltd. designs and builds a lithium-ion pouch cell production line for the customer's battery factory. We provide a full set of battery technology, production line equipment and some consumables. After the delivery of the project, TOB New Energy will send engineers to the factory to complete the commissioning of the equipment.


Date: 2019


Location: Europe



After fully verifying its material system and production process, the customer decided to build a lithium-ion pouch battery production line for its own battery factory. The manufacturing process of the battery can be divided into three links in sequence: the front section, the middle section, and the back section. To put it simply, the first stage is the process of positive and negative electrode production. The middle section is the process of battery production, including five processes including punching, stacking/winding, welding, heat sealing, drying, and electrolyte filling. The core link is the stacking/winding process, which has the highest value in the entire middle process, accounting for about 70%. The latter part is the link of inspection and assembly. This time, the lithium-ion soft-pack battery production line built by Xiamen TOB New Energy Technology Co., Ltd. for customers uses the stacking process. The whole production line completely includes the slurry process, electrode making process, assembly process and chemical formation process of the battery, which can fully meet the daily production needs of customers.


Customer Requirements Form

Battery Type

Lithium-ion pouch cell

Battery size

Thickness:3.0~12mm

Width:20~200mm

Height: 30~300mm

Design Capacity

20mAh ~ 200Ah

Material System

NCM,LFP,LCO,LMO.../Graphite,Si-C,LTO...

Main Process

Stacking process

Production Capacity

10pcs~1000Pcs/Day

Area

100m2,200m2,300m2.....10000m2 ( Depend on battery quantity/Day )


(1) Design a complete production line scheme for lithium ion pouch cell.

(2) Provide a complete set of manufacturing equipment, testing equipment and technical solutions (material formula, battery electrode design, battery process, liquid injection volume, formation process).

(3) Meet the customer's high capacity, high energy density, and high rate discharge (0.5~100C) requirements.

Equipment list


Name

Application

Quantity

Battery slurry mixing system

Battery slurry mixing

1set

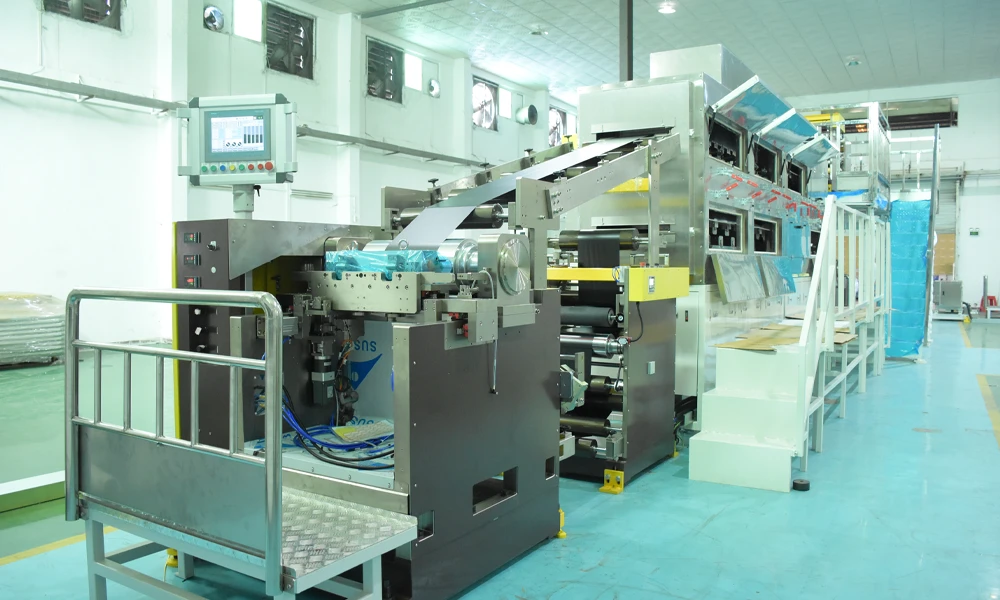

Electrode coating machine

Battery slurry coated on the foils

1set

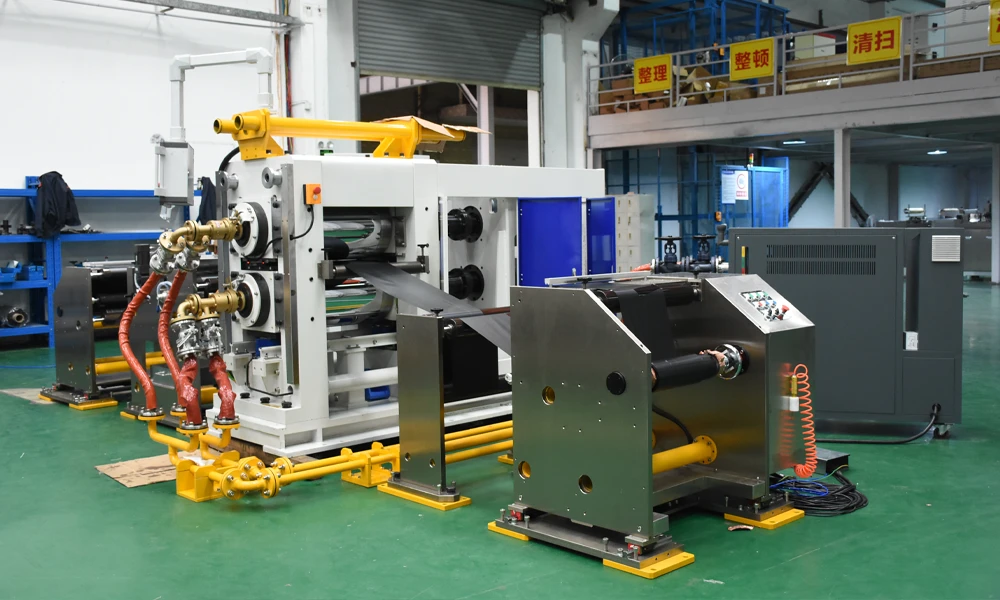

Electrode Rolling press machine

Rolling film to suitable thickness

1set

Electrode Cutting machine

Electrode film cuttting

1set

Electrode Slitting machine

Electrode film slitting

1set

Battery stacking machine

For pouch cell electrode foil and separator stacking

1set

Battery assembly line

Battery cans and cells assembly

1set

Electrolyte filing machine

Electrolyte filling

1set

Pre-charge line

Pre-charge the battery

1set

Sealing line

Sealing the battery cans

1set

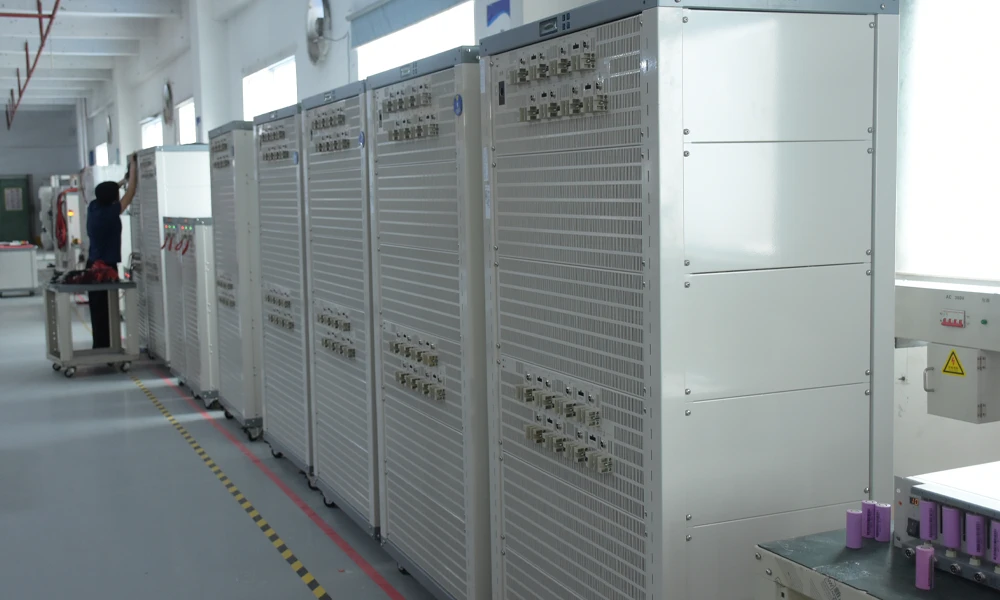

Sorting line

Sorting of batteries by capacity and internal resistance

1set

Packaging line

Pack the battery

1set
