Lithium Ion Polymer Battery Electrode Slitting Machine

Lithium Ion Polymer Battery Electrode Slitting Machine for Electrodes of Cylindrical and Pouch Battery

SPECIFICATIONS

1．Product name：Electric Slitting Machine

2．Model：TOB-FT300

3．Product brief introduction：The machine used for electrode roll slitting after press, it adopts no clearance knife for slitting, slice edge neat, ensure dimensional accuracy.

*Adjustable guide device for feed positioning;

*Using electric rolling cutting strip；

*The meshing amount can be adjusted；

*Upper and lower blades with the same speed, synchronous transmission；

*Plexiglas protection device is arranged at the hob for safe operation；

*Open hob fixed mode, easy to disassemble the hob;

The machine is consist of up and down cutter, holder,  Inlet and outlet positioning plate, gear,  reducer, motor.etc.

*Cutter knife type：Up and down round knife

*Width：10～300mm

*Standard cutter：56mm,56mm,56mm，58mm,58mm.58mm.（can be customized）

*Suitable thickness：50-400μm battery electrode

*Up and Down gap：Handwheel adjusted 0.2-0.4mm

*Cutter diameter：85mm

*Cutter material：Ultra-fine grained alloy steel

*Slitting speed：<2m/min，adjustable

*Voltage：AC220V/50Hz (AC110V/60HZ)

*Power：0.5KW

*Dimension：L 90×W 105×H 30（cm）

*Weight：about 60KG；

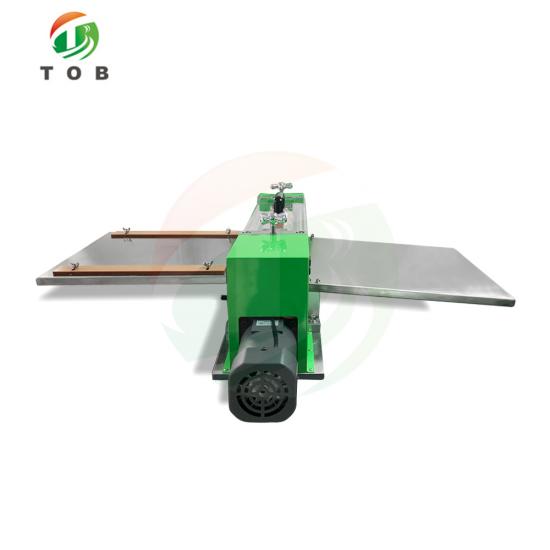

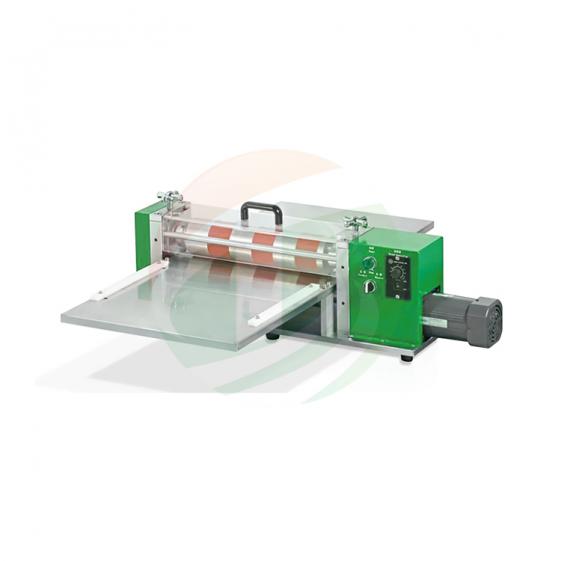

PRODUCT DISPLAY
