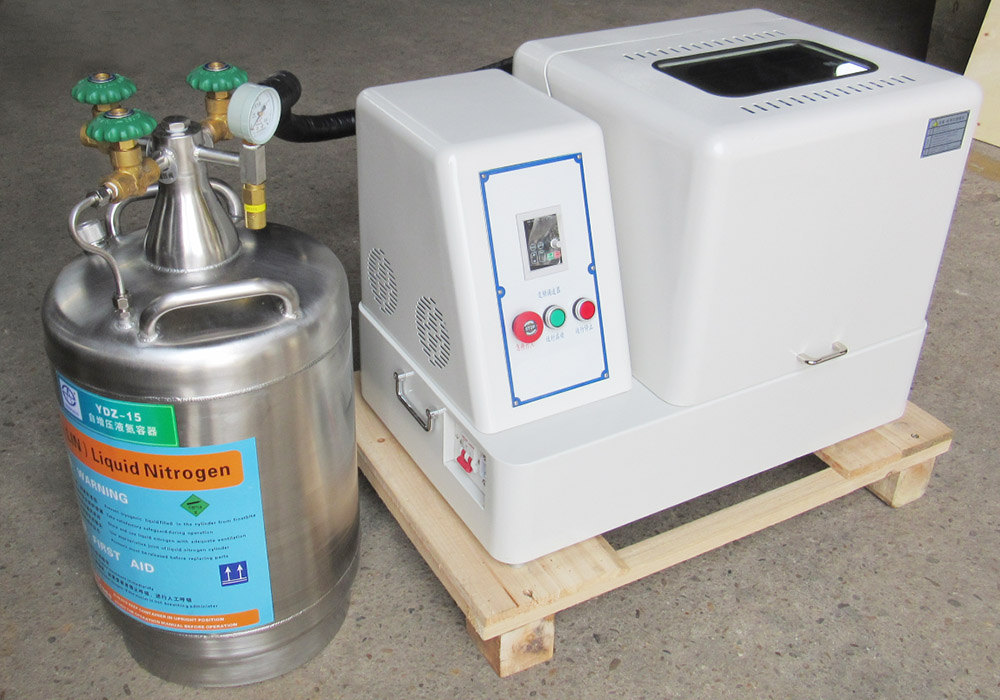

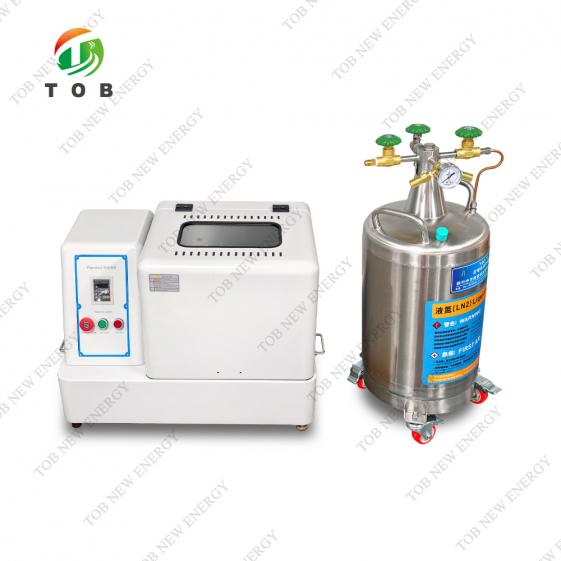

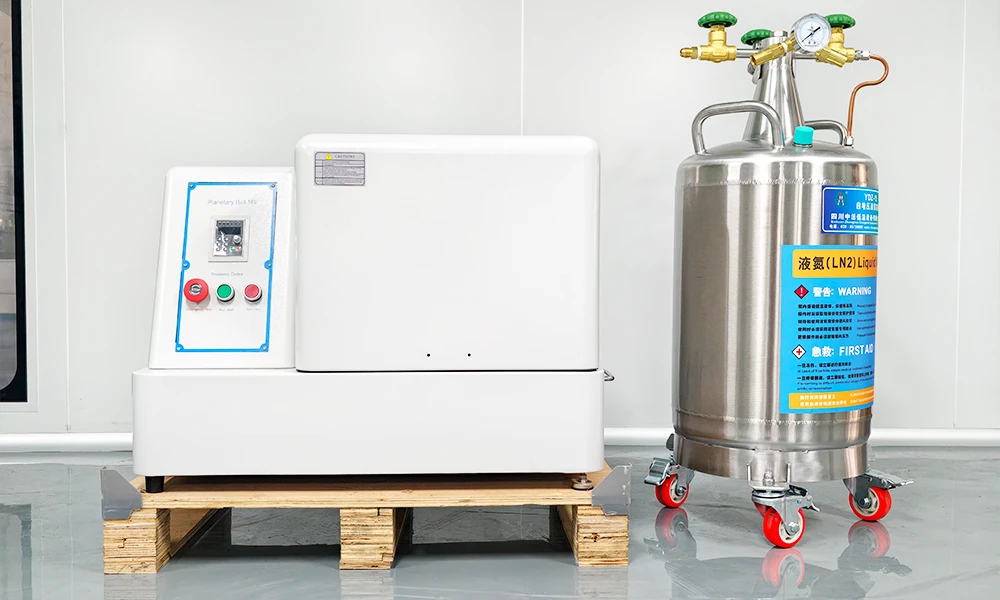

XIAMENLiquid Nitrogen Planetary Ball Mill
SPECIFICATIONS
Overview:
1. Planetary ball mill is necessary equipment for fine grinding, nano-materials preparing, new product developing and preparing small volume high-tech material production.
2. The planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment to get micro particle research samples (can get four samples in one time).
3. It can be equipped with vacuum mill tank, the sample can be ground under vacuum. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals and other departments.
4. It can set the speed, forward and reverse alternating time, and the total grinding time according to process requirement.
Working principle:

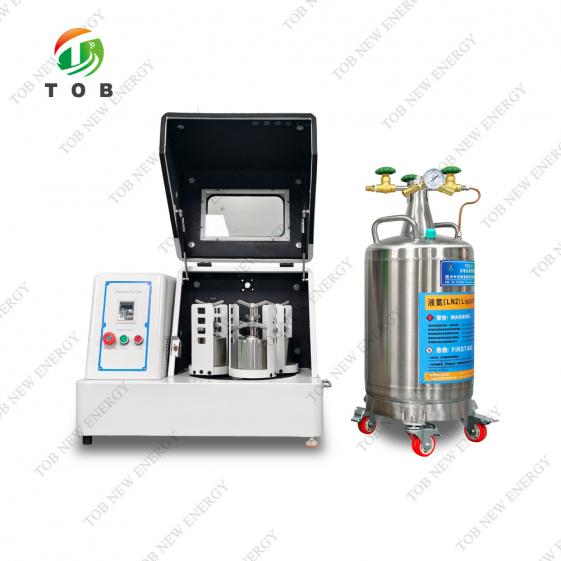

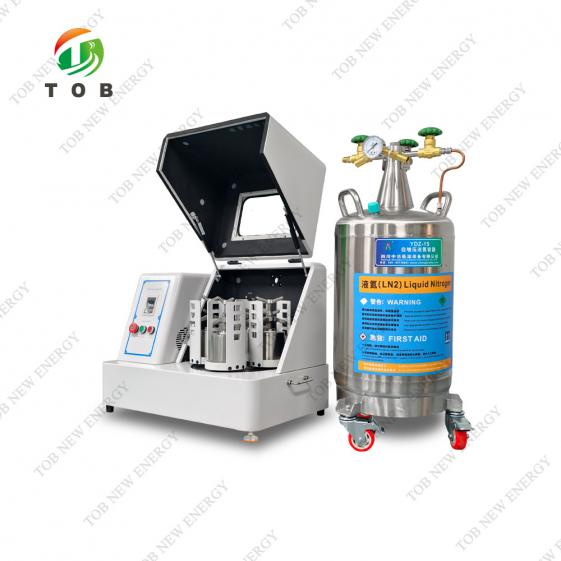

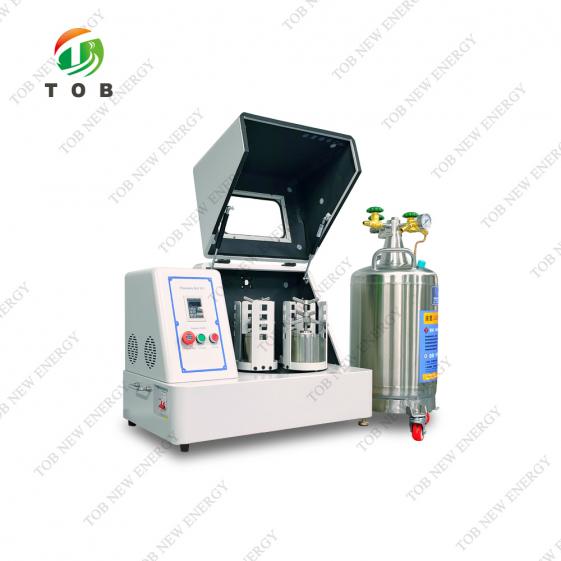

TOB-XQM series variable-frequency planetary ball mill is equipped with four tanks on the same turntable. When the turntable rotates, the tanks revolve around the turntable axis and rotate around its own axis to make a planetary motion.
It can grind by dry and wet methods, and mix samples with different particle sizes and materials. The grinding balls in the tank collide with each other in high-speed motion, grinding and mixing the sample, the minimum particle size can be 0.1 micron.
|
Model |
TOB-XQMYD-2 |
|
Grinding tank volume |
(50ml~500ml)*4 |
|
Grinding tank material |
Zirconia, Corundum, Agate, Cemented Carbide, Stainless Steel, PTFE, PU, Nylon. According to your needs. |
|
Max feeding volume |
Material and grinding balls shall not exceed 2/3 of volume |
|
Feeding material size |
Brittle materials ≤ 10mm,Others≤3mm |
|
Output material size |
Min 0.1um |
|
Speed |
Revolution35~335r/min,Rotation70-670r/min |
|
Working mode |
Two or four tanks work at the same time |
|
Working Voltage |
AC 220V |
|
Power |
0.75 kw |
|
Max continuous working time |
72 hours |
|
Transmission mode |
Gear transmission |
|
Setting time |
1~9999 min |
|
Alternate working time |
1~99 min |
|

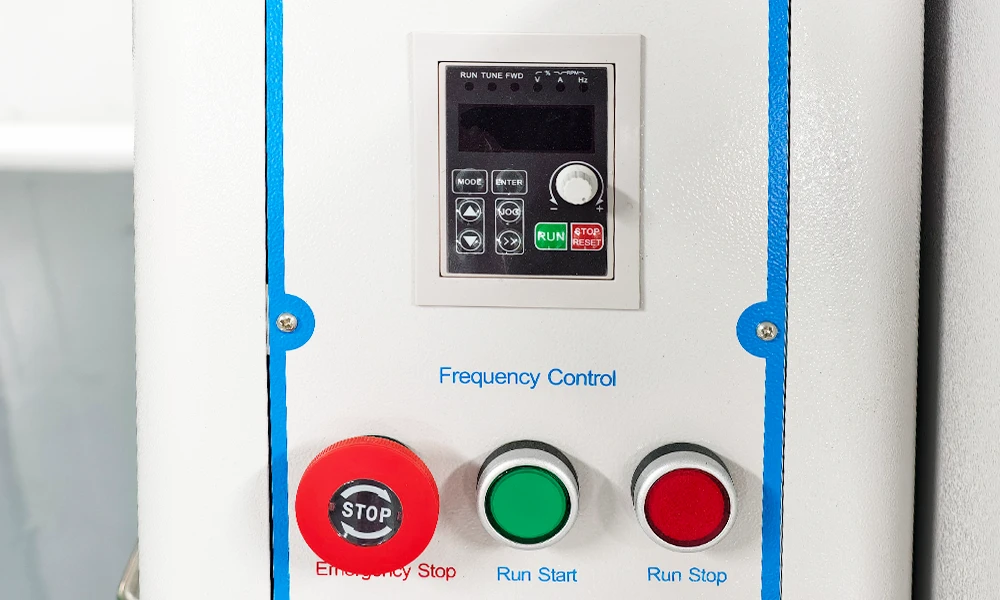

Control operation mode |
Frequency conversion |
|
Liquid nitrogen |
Working temperature of grinding tank: -40 ℃ ~ 20 ℃ Air consumption per unit time (0-10 ℃): 4-5 L/h |
|
Features |
1. Gear transmission overcomes the shortcomings of the original belt transmission, such as easy to slip and unstable speed. 2. The tank adopts planetary motion, with high efficiency and fine particle size. 3. Frequency conversion control, the ideal speed can be selected according to the test results. 4. The frequency converter has undervoltage and overcurrent protection, which can protect the motor. 5. It has the functions of timed shutdown, automatic timed forward rotation and reverse rotation, and can freely choose one-direction, alternating, continuous, timed and irregular operation modes according to needs, so as to improve the grinding efficiency. 6. Four samples of different materials and sizes can be obtained simultaneously in one experiment. 7. Low center of gravity, easy operation, safety and reliability, low noise, no pollution, and low loss. 8. The equipment is equipped with a safety switch, which can prevent the equipment from starting when the safety cover is opened, so as to avoid safety accidents. |
|

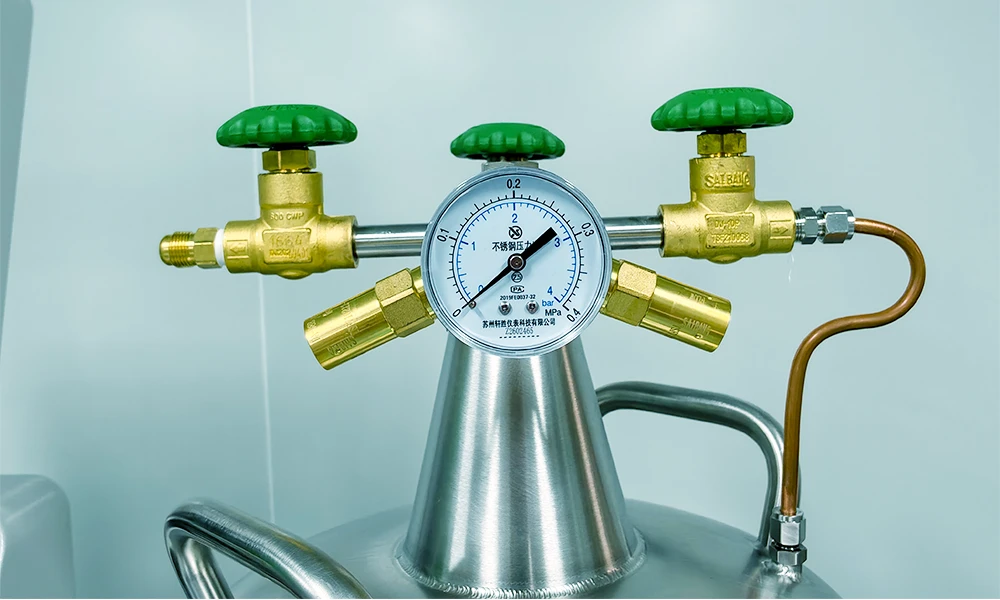

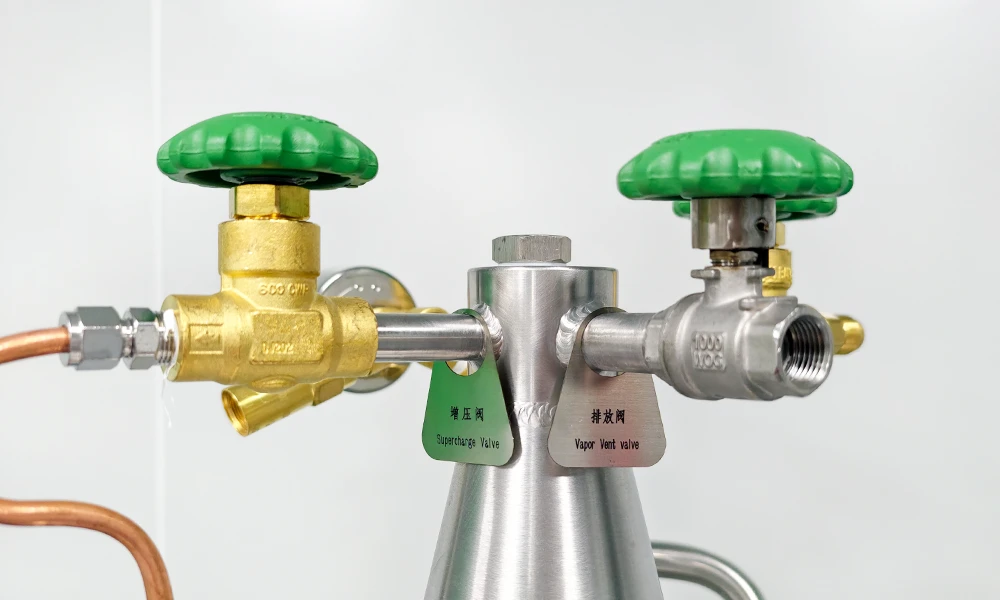

Liquid nitrogen tank (no liquid nitrogen) |
|
|
Effective volume |
15L |
|
Working pressure |
≤ 0.1Mpa |
|
Daily evaporation loss rate |
7% |
|
Input volume |
≥2L/min |

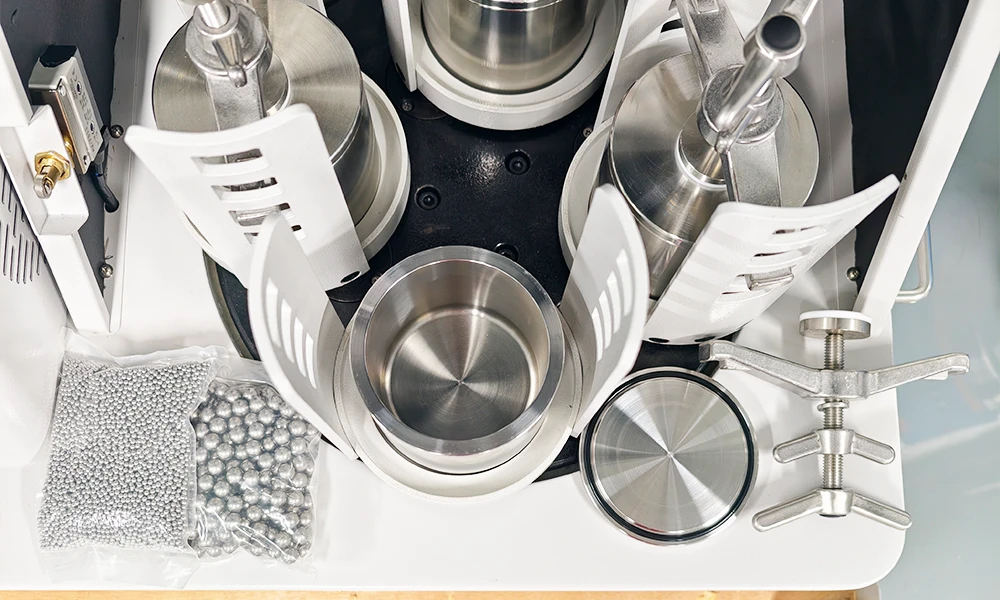

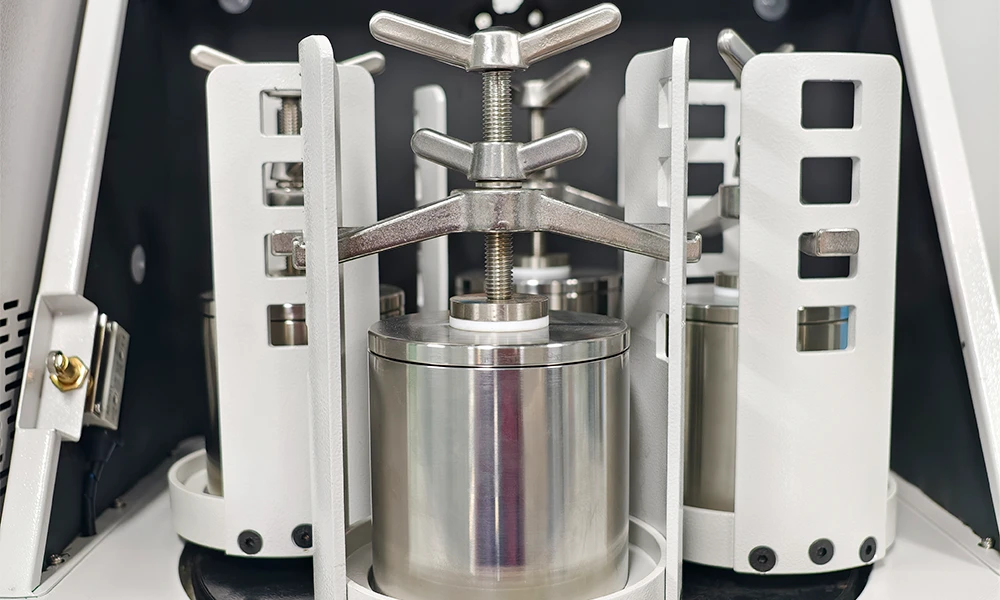

PRODUCT DISPLAY
