LAGP Li1.5Al0.5Ge1.5P3O12 Powder Solid State Lithium Batteries Electrolyte

TOB NEW ENERGY provides the LAGP lithium aluminum germanium phosphate powder material, all solid state electrolyte, for lithium batteries.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    T-LAGP
  • order(moq):

    1 bag
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

LAGP Li1.5Al0.5Ge1.5P3O12 Powder Solid State Lithium Batteries Electrolyte


SPECIFICATIONS



Material name

Purity

D50(μm)

Lithium Aluminum Germanium Phosphate Powder [Li1.5Al0.5Ge1.5(PO4)3]

4N

≤ 2


Lithium Aluminum Germanium Phosphate Powder Li1.5Al0.5Ge1.5(PO4)3


1. Lithium Aluminum Germanium Phosphate Powder[Li1.5Al0.5Ge1.5(PO4)3] (wt%) ≥ 99.99%

2. Material composition ratio:Li : Al : Ge : P : O = 1.5 : 0.5: 1.5 : 3 : 12 (mol)

3. Crystal form:NASICON

4. Ionic conductivity: about 3~6X10-4  S/cm

5. Powder color: white.

6. Impurity content is not more than: unit  PPm

Element

Fe

Cu

Ni

Ca

Na

Mg

Si

Zr

Content

18

6

10

7

12

15

10

8

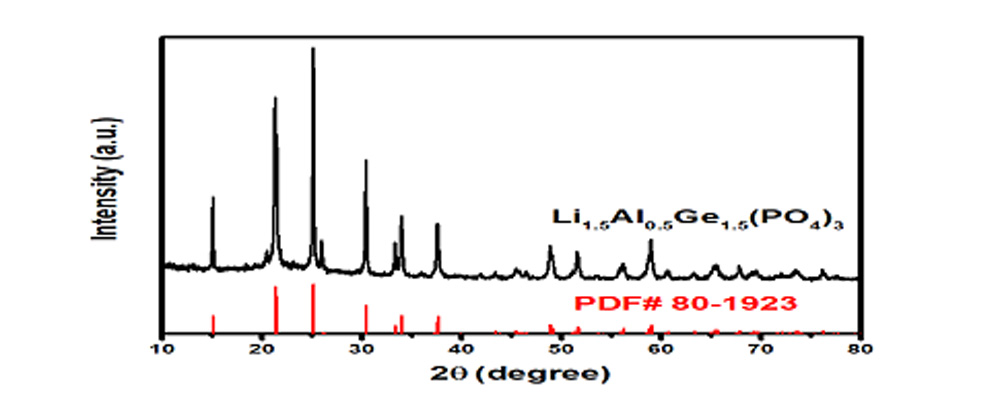

7. XRD:There is a small amount of GeO2 impurity phase

LAGP

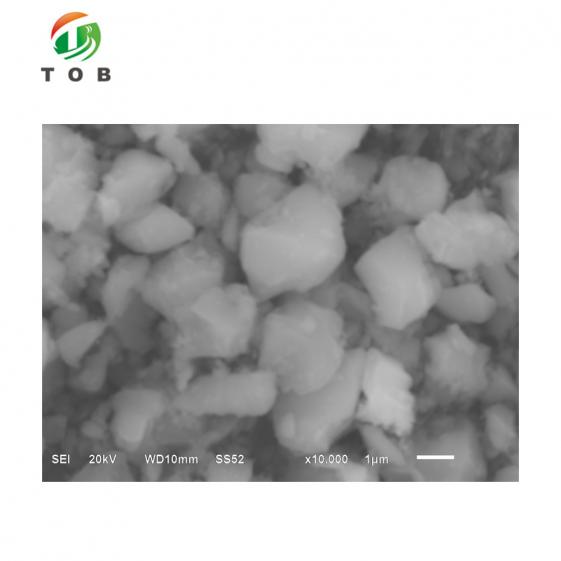

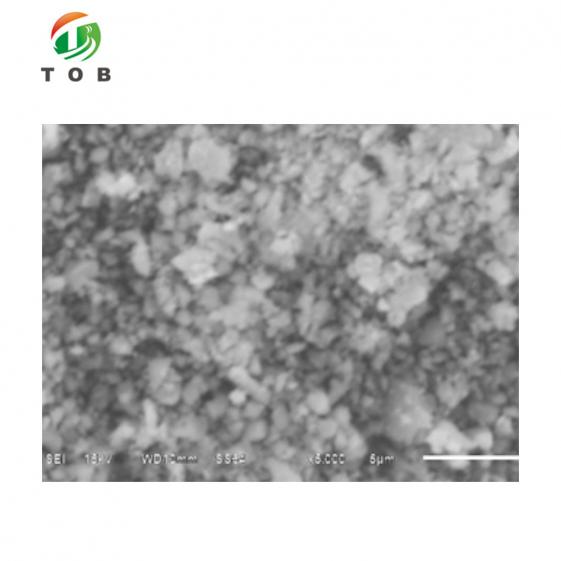

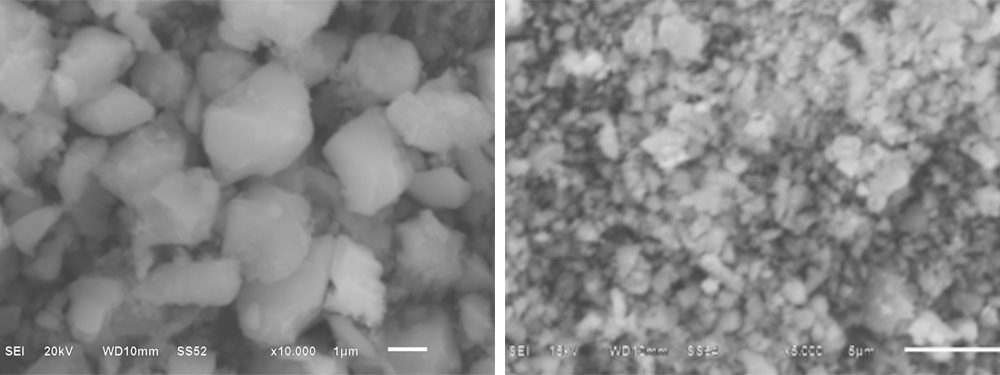

8. SEM

LAGP
