Lab coating machine analysis

Feb 14,2017

Lab coating machine analysis

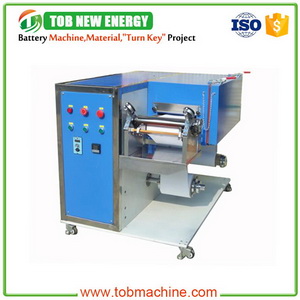

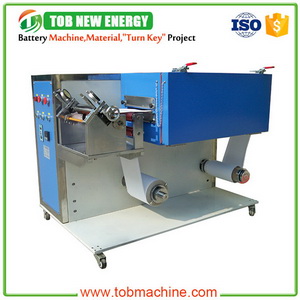

TOB-TBJ-200 Lab coating machine is a compact Roll to Roll continuous coater for battery electrode

sheets with a small size for battery research labs. This coating system integrates the functions

of reeling in and out, slurry feeder, coatingblade, baking oven, and final electrode winding

(reeling in). It can coat electrode sheets up to 180mm in width and 500 meter in length automatically.

This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode

and anode electrode continuous coating.The Lab coating machine is with four Direction wheel in bottom, it can be removed easily for laboratory use.

Main Feature:

1.Max coating width:180mm

2.Applicable matrix thickness:Aluminum foil : 11-30um Copper foil : 8-30um

3.Coating thickness:30-200um

4.Applicable slurry viscosity:1500-15000cps

5.Weight: 500kg

6.Dimension(L*W*H):1200*800*900mm

7.Coating roller accuracy:≤1um

8.Warranty:One Year limited warranty with lifetime support

This continuous coating machine with high quality and competitive price,on Feb.4th,we sale one set of continuous coating machine to Iran.We also can supply whole line for lithium battery lab research with professional technical guidance.

If you have any needing,please contact me freely.

Continuous Coating machine lab coating machine

Contact person:Ailsa Zheng

Email:tob.ailsa@tobmachine.com

Skype:tob.ailsa@tobmachine.com
