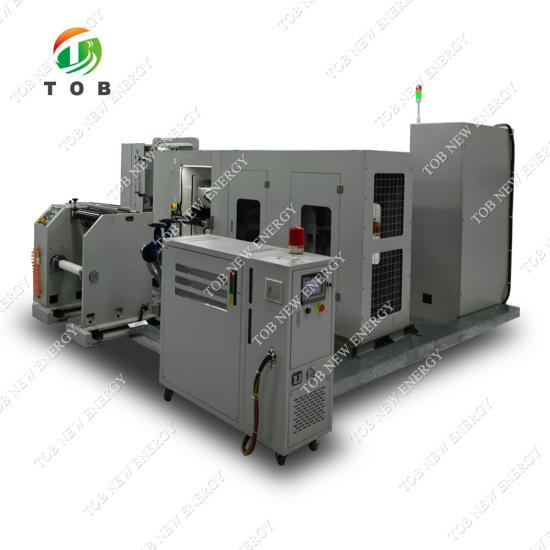

Hydraulic Heating Calendering Machine For Battery Electrode

SPECIFICATIONS

The TOB-H400450-CT battery electrode hydraulic heating calendering machine is a special equipment for the production of lithium ion battery electrode sheets, mainly used for calendering, heating and compacting electrode sheets. The battery electrode calendering machine uses a hydraulic system to provide pressure, and a heating system to heat the rollers. Through the relative movement of the upper and lower rollers, the coated electrode sheets are rolled to the required thickness and density, while improving the conductivity and mechanical strength of the battery electrode sheets.

Equipment Action Step

Unwinding → Connecting foil → Edge cutting → dust absorption → Pneumatic buffer → Preheating → Hot rolling → Reserved laser thickness measurement position → Pneumatic buffer → Connecting foil → Winding

No.	Equipment name	Model	Remark
1	Battery electrode roll press line	TOB-H400450-CT	Effective roll width 100~400mm

No.	Item	Description	Remark
1	Suitable system	LFP, LCO, LMO, NCM, etc. Battery cathode and anode electrode continuous rolling process.
2	Rolling material	Aluminum foil (12um-1.5mm) Copper foil (6um-1.5mm)
3	Rolling method	The two rollers are horizontally rolled, and the drive is located on the right side of the feeding end.
4	Working pressure	Constant pressure pump, suitable for cathode high pressure rolling and anode low pressure rolling.
5	Equipment speed	Stepless adjustable, and the linear speed of upper and lower rolls is equal.	Max 20m/min
6	Automatic adjustment function of bearing clearance	Use the oil cylinder to adjust and open automatically.
7	Control method	PLC, Touch screen control operation.

No.	Item	Description	Remark
1	Effective size of rolling surface	Ф400mmx450mm, effective rolling width 100~400mm
2	Line pressure between two rolls	Max3000KN
3	Non-attenuating hardness layer	Min 26mm
4	Roller hardness	HRC≥66,Hardness uniformity≤HS±1	With test report
5	Roller surface roughness	Ra≤0.04	With test report
6	Roller straightness	≤±0.001mm	Grinder detection
7	Installed radial runout	≤±0.002mm
8	Adjustable roll gap range	0-2.0mm，Digital setting adjustment precision 0.001mm. The gap between the two rollers is consistent
9	Rolling accuracy	≤±0.002mm（Coating accuracy≤±0.003mm）
10	Pressure control accuracy	≤0.15T
11	Equipment running speed	Max30m/min
12	Cutting width	100mm-400mm
13	Maximum diameter of winding and unwinding	Ф400mm
14	Maximum width of winding and unwinding	420mm
15	Maximum weight of winding and unwinding	300Kg
16	Diameter of foil winding core	Φ76mm
17	Winding and unwinding shaft in the operation radial runout error	≤±0.03
18	Winding and unwinding shaft surface roughness Ra	≤0.15
19	Winding and unwinding shaft coaxiality	≤±0.03
20	deviation correction accuracy	Max. 0.2mm
21	Maximum winding tension	0 ~ 50N Adjustable
22	Device color	International warm grey 1C
23	Main motor power	11KW
24	Rolling machine Dimensions	About 3.6m X 1.2m X 2.45m
25	Rolling machine production line dimension	6m X 4.0m X 2.0m Including roller removal height
26	Rolling machine production line weight	About 8 T
27	Equipment total power	55KW

PRODUCT DISPLAY

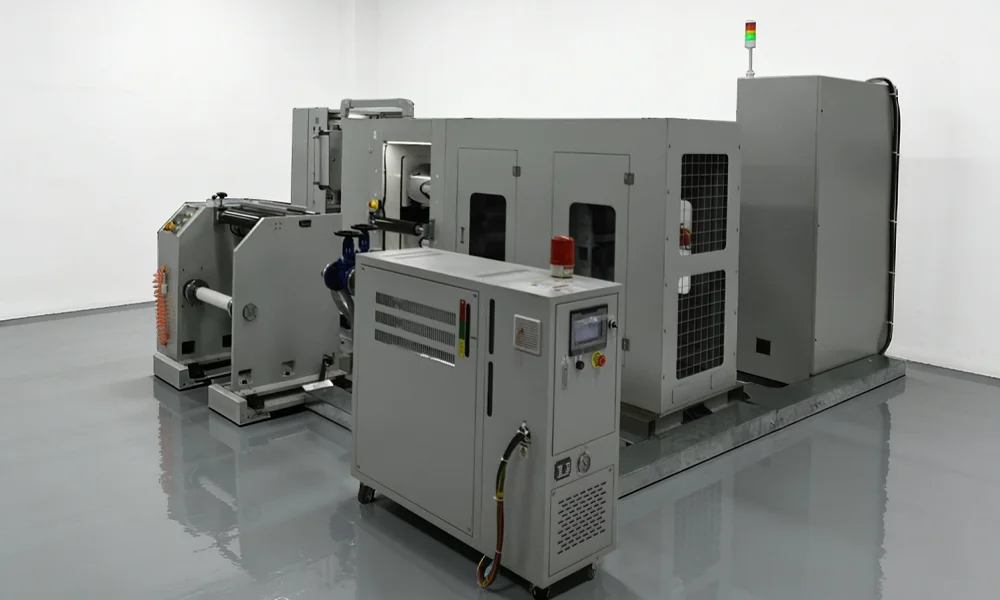

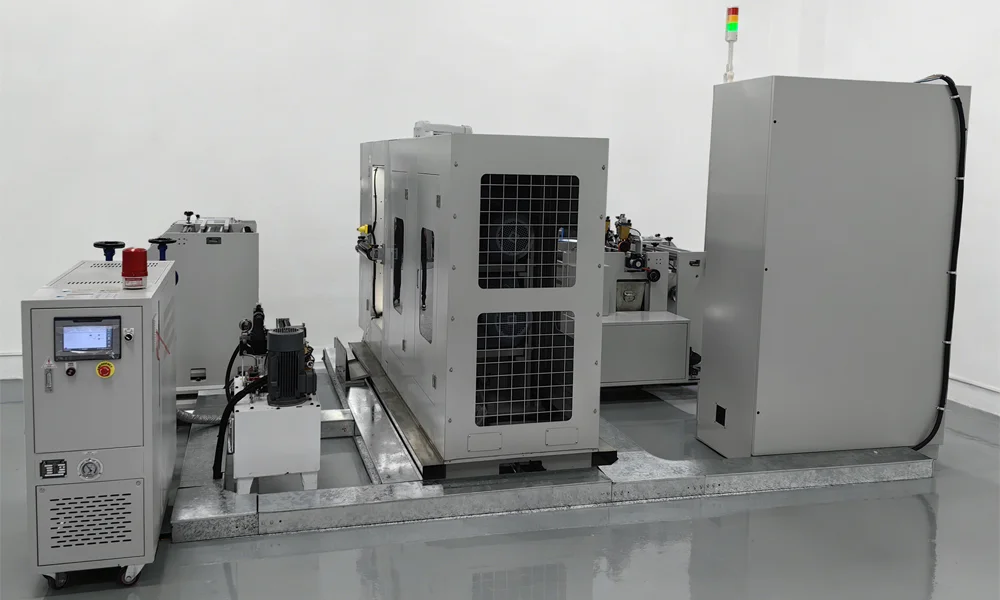

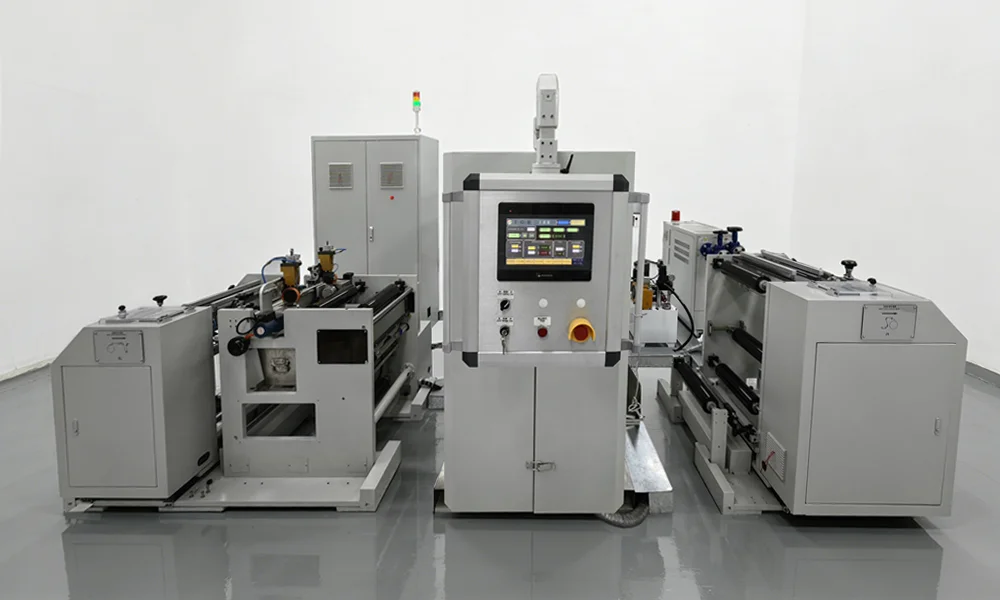

Battery Electrode Calendering Machine
