Brand:
TOB NEW ENERGYitem no.:
TOB-D-RY400order(moq):
1setPayment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMEN400*300mm Size Heat Press Machine For Lithium Battery Cells After Winding Process
SPECIFICATIONS
TOB-D-RY400 heat press machine is mainly used for battery cells hot pressing after winding process, easy for battery cells into the pouch or shell.
Using the hot press shaping machine after battery winding on the template by pressure and heat to reduce batteries thickness with finalize design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries.
The machine has simple structure and easy operation. During operation, equipment power supply first, the equipment will heat automatically after setting temperature, when achieved to the set temperature, manual put the cell or other materials on the lower plate, set press time and pressure, double press the start button, the upper plate will down automatically, when up to the set time, the upper plate will rise automatically, then take out the cell or materials.
|
Model |
TOB-D-RY400 |
|
Press plate size |
400*300mm |
|
Plate material |
45# Steel plate |
|
Pressing holding time |
0-999.9s adjustable |
|
Max press pressure |
5T |
|
Parallelism of upper and lower hot plates |
≤0.1mm |
|
Control temperature |
RT-400℃,adjustable, With temperature error±2° |
|
Air supply |
0.4-0.65MPa, |
|
Source voltage |
AC220V/50HZ |
|
Power |
4KW |
|
Dimension(L*W*H) |
800x760x1900 mm |
|
Weight |
280kg |
|
Operating ambient temperature |
5～35℃、RH<45% |
|
Main components |
Temperature controller : Panasonic Time relay: Omron Solid-state relay : Yangming 5 ton gas-liquid booster cylinder Upper and lower copper heating plates The thickness of upper and lower working plates is 30MM The equipment is provided with an emergency stop and an emergency stop protective cover Double button startup, button spacing ≥260mm |

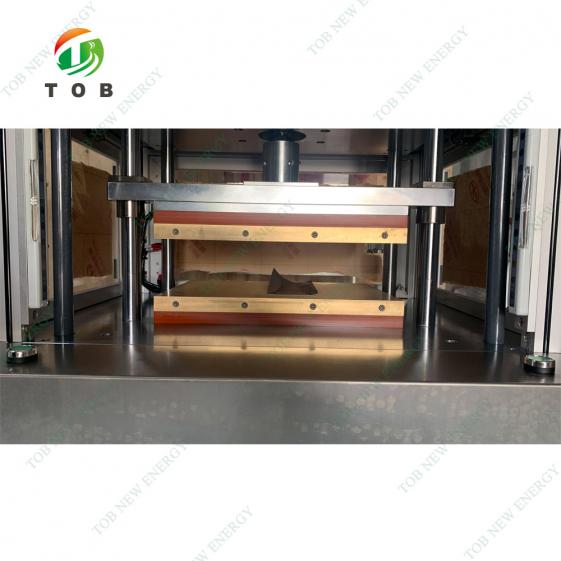

PRODUCT DISPLAY
