Graphite

Conductive Graphite is used as conductive material when preparing Li-ion battery Cathode and Anode.

Graphite oxide powder  SPECIFICATIONS Packing:1g/bag Mode: TOB-2430 Parameter Index value PH value ～2 Stacking density (g/ml) 0.3~0.4  Carbon（%） 35～47  Oxygen（%） 40～50 Hydrogen （%） 2.5～3.5 Grain size （um） 5～50  (Can be customized) Graphite oxide XRD Performance and spplication  Contains abundant hydroxyl, carboxyl group and epoxy group containing oxygen functional groups.   No need addition of surfactant can be in high speed stirring and ultrasonic dispersed in aqueous  solution,DMF, NMP and other organic solvents. And the solution has good stability.   Use: can be used in the field of plastic, resin, carbon fiber and glass fiber composite materials,also can be used in flame retardant field and graphene R$D.    Packaging、transport and storage 1、Packaging: Packed in plastic bottle or glass bottle. 2、Transport: Avoid exposure to sunlight、rain and extreme heat.  Ensured that the containers should not be leaking, toppled down and damaged.  Mixed loading and mixed transportation with other items such as corrosive materials、oxidizing agents、acids etc.  3.Storage: This product should avoid light seal kept in dry environment,  and the temperature is not higher than 50℃.Do not contact toxic and harmful gases and volatile matter  and pollution source，Keep away from fire。    Warning Safety precautions: avoid direct contact with the skin during use    PACKAGE                  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Graphene powder (conductivity type) SPECIFICATIONS Packing:10g/bag Mode: TOB-1231   Model Standard value tap density(g/ml) particle-size analysis purity(%) water(%) ash content(%) Sheet thickness (nm) conductivity(s/m) D10/(um) D50/（um） D90/(um) TOB1231 0.08~0.1 ≤5 ≤10 ≤20 ≥99 ≤0.5 ≤0.5 ≤10 ≥2000 Performance: （1)The percolation threshold is lower than conductive carbon black and more stable  conductivity,high efficiency. （2）Easy to disperse, easy grinding （3）In the electric conduction(static) coatings that suggested the addition amount of 3%,          can make the coating has excellent electrical properties (static).          Also has excellent mechanical performance and corrosion resistance; （4) Suitable for the lithium ion battery cathode material cladding,         which can effectively improve the battery energy, improve the cycle life and rate. Application:  Mainly used in the field of coating, printing ink, plastic,  rubber and lithium ion batteries.   Handling and storage Operators should be trained, strictly abide by the rules. Proposed operators wear appropriate protective clothing,wear suitable chemical protective gloves,  avoid breathing, avoid direct contact with eyes and skin.  and number of fire equipment and emergency treatment equipment. Store in a cool, ventilated and dry place.  Keep the container sealed. Away from fire, heat source.  With the strong oxidation agent separate storage.  Storage area is equipped with the appropriate variety and quantity of fire fighting equipment,  emergency treatment equipment and appropriate container materials. PACKAGE                  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Graphene powder (Energy storage type) SPECIFICATIONS Packing:10g/bag Mode: TOB-G4530     Model Standard value  specific area（m2/g） particle-size analysis   purity（%） water（%） ash content（%） aperture （nm）         PH D10/(um) D50/（um） D90/(um) TOB4532 ≥2000 ≤20 ≤50 ≤80 ≥99 ≤0.5 ≤0.5 1~10 8.0~9.0 Performance: With high specific surface area and advanced pore, The pore structure is reasonable,   Compared with the conductive properties of activated carbon is better,  can effectively reduce the internal resistance, improve the cycle life.   Application:  Can be used as electrode material for supercapacitor.  Mainly used in electric vehicles, electric tools, railway system, electric power,  wind power system...   Handling and storage Operators should be trained, strictly abide by the rules. Proposed operators wear appropriate protective clothing,wear suitable chemical protective gloves,  avoid breathing, avoid direct contact with eyes and skin.  and number of fire equipment and emergency treatment equipment. Store in a cool, ventilated and dry place.  Keep the container sealed. Away from fire, heat source.  With the strong oxidation agent separate storage.  Storage area is equipped with the appropriate variety and quantity of fire fighting equipment,  emergency treatment equipment and appropriate container materials. PACKAGE                  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Graphene powder (high - temperature) SPECIFICATIONS Packing:10g/bag Mode: TOB-G1331   Model Standard value   tap density（g/ml） particle-size analysis purity（%） water（%） ash content（%） Sheet thickness （nm） thermal conductivity（w/m.k） D10/(um) D50/（um） D90/(um) SE1330 0.08~0.1 ≤5 ≤10 ≤20 ≥99 ≤0.5 ≤0.5 ≤10 5300 Performance: （1）Excellent performance of thermal conductivity,  With PC composite prepared insulation materials thermal conductivity  more than 15W/mK,With PA6 composite prepared insulation materials thermal conductivity more than 20W/mK. （2）Pieces of thin, easy to disperse, easy processing. （3）Having the lower percolation threshold  Application: Mainly used in the field of radiating coating, thermal conductivity glue,  conductive plastics, conductive rubber, LED cooling etc. Handling and storage Operators should be trained, strictly abide by the rules. Proposed operators wear appropriate protective clothing,wear suitable chemical protective gloves,  avoid breathing, avoid direct contact with eyes and skin.  and number of fire equipment and emergency treatment equipment. Store in a cool, ventilated and dry place.  Keep the container sealed. Away from fire, heat source.  With the strong oxidation agent separate storage.  Storage area is equipped with the appropriate variety and quantity of fire fighting equipment,  emergency treatment equipment and appropriate container materials. PACKAGE                  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Graphene powder (enhancement type) SPECIFICATIONS Packing:50g/bag Mode: TOB-G1432 Performance: （1）Little dosage can significantly improve the mechanical properties of materials,  For example, When the dosage of 0.02%,  unsaturated polyester resin impact strength can be increased by 100%,   increase bending elongation 50%;. （2）Add the graphene that composite liquidity better, easier processing. （3）Easy scattering, easy grinding.   Application: Can composite with plastic, resin, rubber, glass fiber and carbon fiber etc.  To increase the mechanical properties of composite materials.   Handling and storage Operators should be trained, strictly abide by the rules. Proposed operators wear appropriate protective clothing,wear suitable chemical protective gloves,  avoid breathing, avoid direct contact with eyes and skin.  and number of fire equipment and emergency treatment equipment. Store in a cool, ventilated and dry place.  Keep the container sealed. Away from fire, heat source.  With the strong oxidation agent separate storage.  Storage area is equipped with the appropriate variety and quantity of fire fighting equipment,  emergency treatment equipment and appropriate container materials. PACKAGE                  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Applicable to all kinds of lithium ion battery, especially the power type, capacity type power battery (electric tools, model aircraft, electric bicycle, electric vehicle...)

Suitable for steel battery, aluminum shell battery, polymer battery, power battery etc.

Suitable for high-end square, cylindrical, polymer, power lithium ion battery.

Li-Ion Battery Anode -Copper foil double side coated by CMS Graphite.

Nano graphite is mainly used for high lubrication, high conductivity, high adsorption and catalytic performance, chemical industry, iron and steel, lubrication, aerospace, lubricating oil etc.

Nano graphite is mainly used for high lubrication, high conductivity, high adsorption and catalytic performance, chemical industry, iron and steel, lubrication, aerospace, lubricating oil etc.

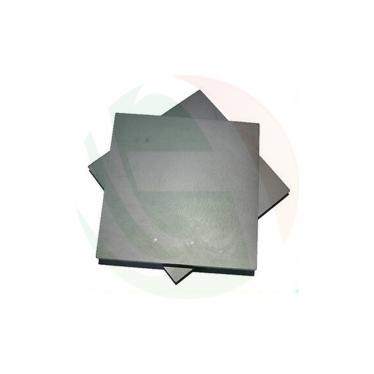

99.99% graphite sheet for electrode SPECIFICATIONS Packing: 5pcs/bag Product :  Graphite sheet Size 100*50*2mm Purity 99.99%   Other size list:  100*50*2mm                       200*100*5mm 200*100*10mm 200*150*3mm 200*150*5mm 200*150*10mm 250*200*10mm 300*200*2mm 300*200*3mm 300*200*4mm 300*200*5mm 300*200*6mm 300*200*8mm 300*200*10mm 300*200*15mm 400*200*10mm 400*400*5mm 400*400*10mm 300*200*20mm 300*200*30mm 300*200*40mm 100*50*3mm 100*50*5mm 100*50*10mm 100*100*1mm 100*100*2mm 100*100*3mm 100*100*4mm 100*100*5mm 100*100*6mm 100*100*8mm 100*100*10mm 100*100*15mm 100*100*20mm 100*100*25mm 100*100*30mm 100*100*35mm 100*100*40mm 100*100*45mm 100*100*50mm PRODUCT DISPLAY  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

99.99% graphite sheet for battery electrode.

Use for biofuel cell electrode.

TOB New Energy provides large batch order of the lithium-ion battery, sodium ion battery and supercapacitor anode materials, such as graphite, MCMB, LTO, Silicon anode, soft carbon, hard carbon, etc.
