Coin Cell Test Clamp

The upper and lower contact surfaces are gold-plated for better conductivity, and the gold plating thickness is 0.03U. Tooth pattern treatment, strong clamping force, more stable contact, service life ≥ 20000~50000 times. Fireproof engineering materials, improve safety, flame retardant grade UL94V-0. Can be put into the oven for testing, operating temperature range: -55℃~125℃.

Brand:
TOB NEW ENERGY
item no.:
TOB-1250-3
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

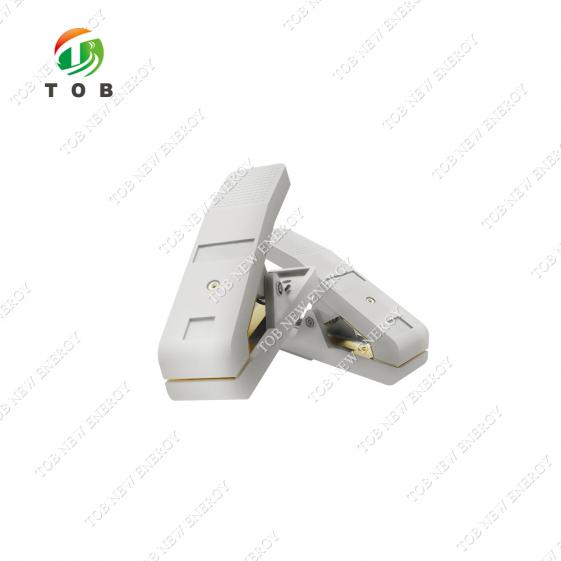

Coin Cell Test Clamp

SPECIFICATIONS

1.The upper and lower contact surfaces are gold-plated for better conductivity, and the gold plating thickness is 0.03U.

2.Tooth pattern treatment, strong clamping force, more stable contact, service life ≥ 20000~50000 times.

3.Fireproof engineering materials, improve safety, flame retardant grade UL94V-0.

4.Can be put into the oven for testing, operating temperature range: -55℃~125℃.

Model	TOB-1250-3
Working temperature range	-55℃~+125℃
Current	3-5A
Contact resistance	≤1mΩ
Insulation resistance	500VD.C≥1X109Ω
Mechanical life	≥20000-50000 times
Flame retardant rating	UL94V-0

PRODUCT DISPLAY

Coin Cell Test Clamp

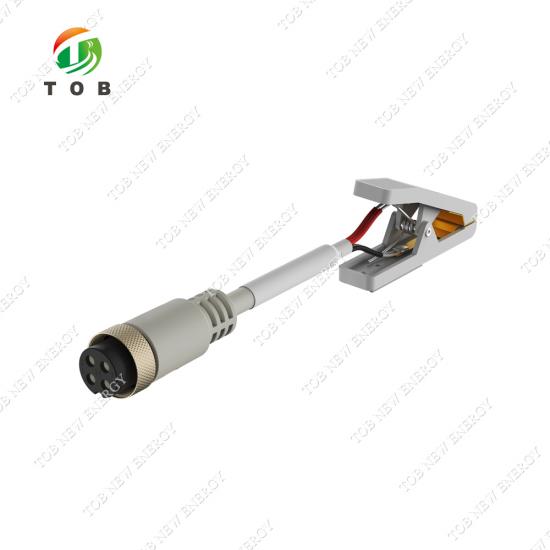

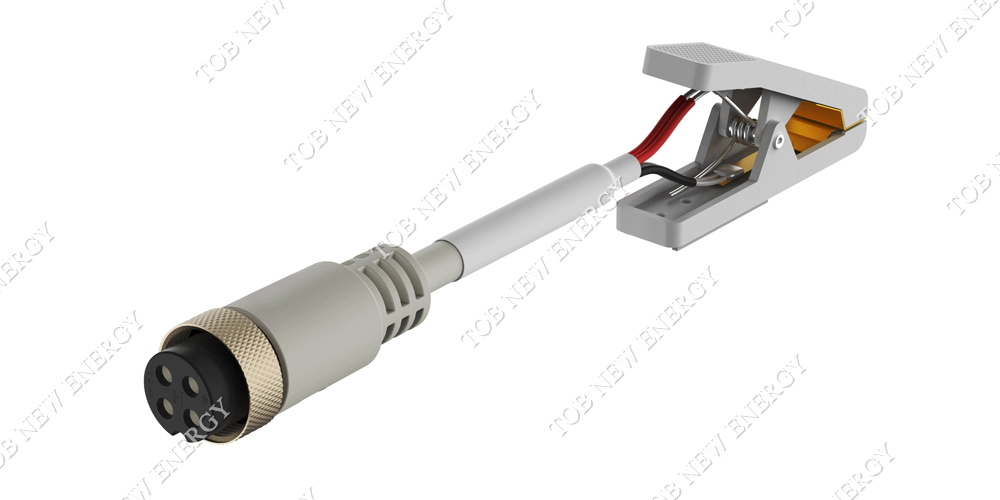

164/204 Aviation plug, stable signal transmission, convenient connection.
The shell is made of high-quality thickened insulating material, safe and stable.

Coin Cell Test Clamp

Four-color current and voltage wires make it easier to distinguish between positive and negative.

Coin Cell Test Clamp

0.1m air plug wire, avoid clutter, simple and beautiful.
Light and thin cold-rolled plate tray, moderate thickness of 2mm, with fixed holes, stable and light.
