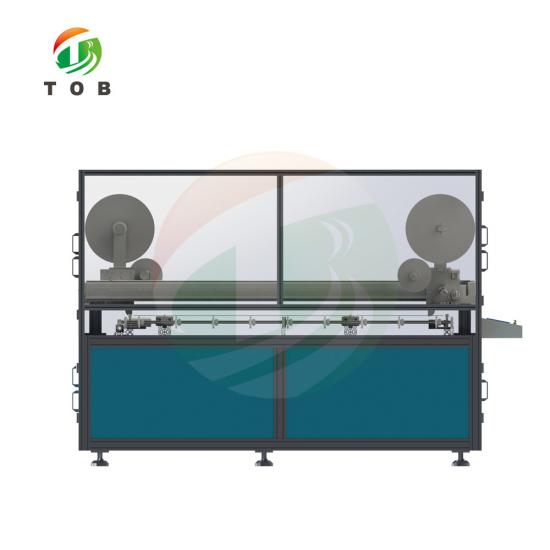

Butyl Rubber Sealing Tape Sticking Machine for Thin-film Solar Cell Manufacturing

This machine is composed of automatic butyl tape application system, automatic butyl tape release and collection system, chip automatic transmission and positioning system, and control system.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-BRST
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    china
  • shipping port:

    xiamen
Product Detail

Butyl Rubber Sealing Tape Sticking Machine for Thin-film Solar Cell Manufacturing


SPECIFICATIONS


Equipment Component and introduction

This machine is composed of automatic butyl tape application system, automatic butyl tape release and collection system, chip automatic transmission and positioning system, and control system. The head is placed on the moving mechanism, and the head is driven to move by the synchronous belt movement controlled by servo motor to realize rolling laying.


Parameters

a. Size:

   1840*910*1800(for 600*1200 Substrate);

   2600*1815*1915(for 1000*2000 Substrate);

b. Running speed: 50~200mm/s adjustable (touch screen digital adjustable)

c. The conductive adhesive disc change time: <2min/time.

d. The life of sealant tape cutter>150000times

e. Taping pressure 60~150N adjustable

f. Supply and rewind tray tension can be adjusted digitally on the touch screen

g. The width of sealant tape:12.7mm,tihe thickness:0.74mm

The efficiency: ≤52S


Product Display

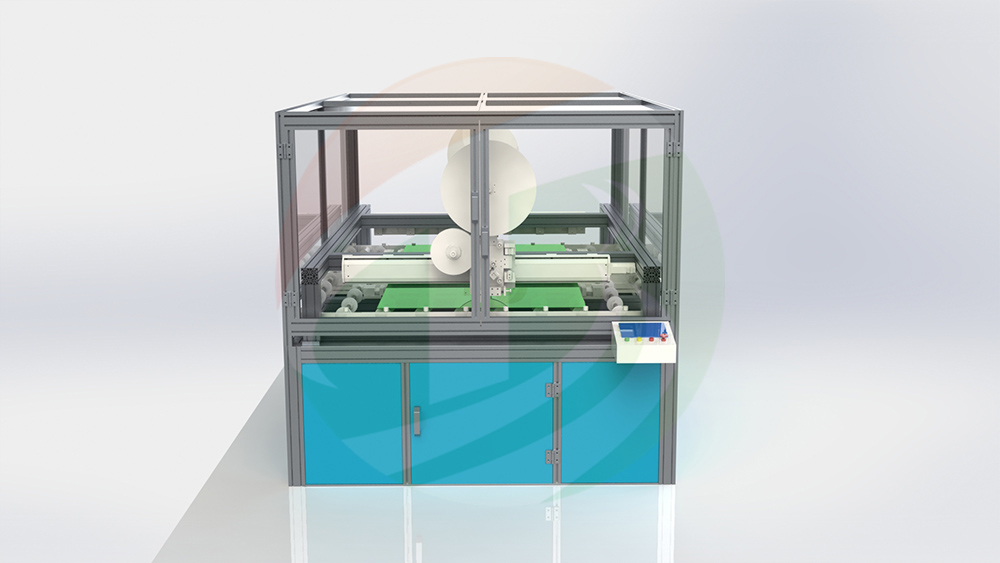

Short side Butyl Rubber Sealing Tape Sticking Machine

Sealing Tape Sticking Machine



Long side Butyl Rubber Sealing Tape Sticking Machine

Sealing Tape Sticking Machine
