Automatic Dust Cleaning Powder Brushing Machine for Lithium Battery Electrode

This dust cleaning machine is suitable for the powder brushing process after die-cutting of electrode and lithium battery electrode.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-PBM-300
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    xiamen
  • Lead Time:

    30 days
Product Detail

Automatic Dust Cleaning Powder Brushing Machine for Lithium Battery Electrode Cleaning



SPECIFICATIONS


Functional Overview:

This battery electrode dust cleaning machine is suitable for the powder brushing process after die-cutting of electrode and lithium battery electrode.


Work flow:

The battery electrode dust cleaning machine is connected behind the electrode die-cutting machine. After the die-cutting machine produces the electrode, the slope plate falls to the conveyor belt, the conveyor belt parts electrode is transported into the powder brushing mechanism for powder brush, and then the conveyor belt is transported, and the slope plate falls into the material plate.


Technical parameter:


Work Speed: Running speed of powder brushing mesh belt 200mm/s

Electrode size: Length 150mm~260mm; Width 80mm~130mm


Process performance:

1.Mesh belt type powder brushing mechanism, the upper and lower surfaces of the electrode are brushed at the same time.

2.Multiple brush rows and brush rollers work together to complete the powder brushing process to ensure the quality of powder brushing.

3.The upper and lower closed dust suction chamber of the powder brushing mechanism protects the electrode from secondary pollution and avoids the pollution of the working environment.

4.Large air volume centrifugal exhaust fan for dust collection.

5.Exhaust fan inlet filter, protection fan, primary filtration; The outlet cloth bag is used for secondary filtration of exhaust.


Main Mechanical part:

1. Conveyor belt mechanism:

Aluminum profile side panels,chrome-plated steel rollers,PVC conveyor belts and other metal parts.

2. Powder brushing mechanism:

Teflon mesh belt,chrome-plated steel roller, non-powered roller,PE brush row, PE brush roller,chrome-plated side plate, stainless steel cover and other metal parts.

3. Dust removal and filtration system:

Centrifugal fan, filter screen, cloth bag.

4. Outlet conveyor belt:

Aluminum profile side panels, chrome-plated steel rollers, PVC conveyor belts and other metal parts.


PRODUCT DISPLAY

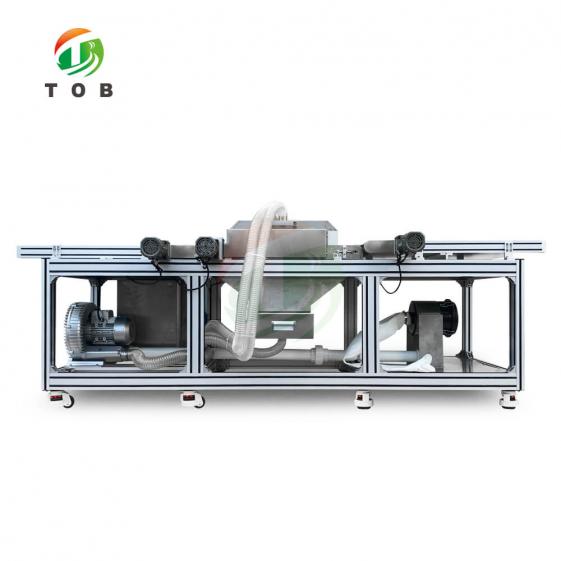

battery electrode dust cleaning machine

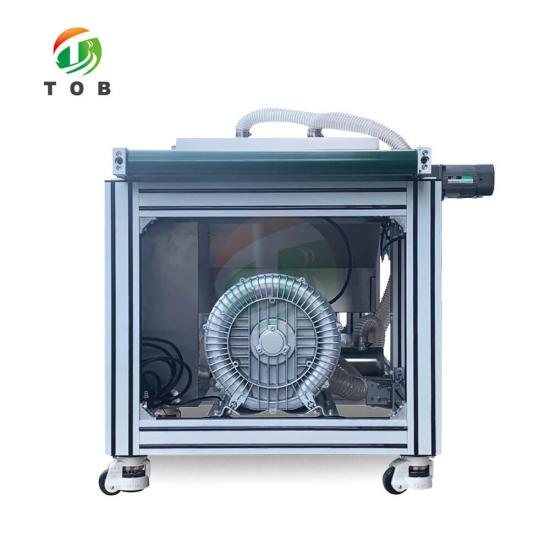

dust cleaning machine

electrode dust cleaning machine

battery electrode cleaning machine
