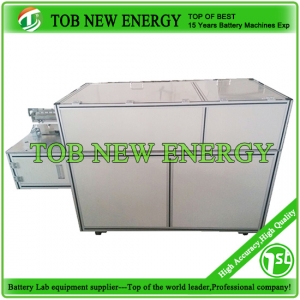

Automatic Battery Edge Cutting, Folding And Hotting Machine

This machine is an automatic three in one machine for polymer battery edge cutting, folding(Trimming) and hotting(Perming).
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-ACFH-300
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

Automatic Battery Edge Cutting, Folding And Hotting Machine For Pouch Cell Battery Equipment


SPECIFICATIONS



This machine is anautomatic three in one machinefor polymer battery edge cutting, folding(Trimming) and hotting(Perming).

It is mainly used for Lithium pouch cell appearance molding process.

1.1 Suitable for soft packing lithium battery automatic trimming, edge folding and hot edge shaping

1.2 The trimming mechanism space can be adjusted to adapt to different width of battery

1.3 The machine can display and adjust the temperature of side hotting ,with abnormal alarm function

1.4 Cam drive, high speed and accuracy

1.5 Import PLC, touch screen control display, import LCD thermostat, error of ± 2 ℃


Model

Automatic Battery Edge Cutting, Folding And Hotting Machine

TOB-ACFH-300

Source voltage

AC220V, Single phase. Customized according country request

Power

1.8KW

Warranty

One year limited warranty with lifetime support

Compressed air

0.6MPa, 5L/min

Output

500-1800EA/H

Cutter length

320mm

Suitable battery size

Length 0-300mm, Width 23-150mm, Thickness 8-11mm

Edge folding thickness

0.19-0.3mm

Edge cutting accuracy

±0.10 mm

Parallelism between cutter

0.05mm

Knife hardness

HRC≥58°

Cutter knife life

1 000 000times

Dimension (L*W*H)

1700*620*1100mm

Weight

600kg
