Comprehensive Air Leak Tester

SPECIFICATIONS

The Air Leak Tester, also known as Air Tightness Tester, Leak Tester, or Waterproof Tester, is primarily used for product seal testing, waterproof testing, air tightness testing, and IPX waterproof rating testing and certification. It mainly uses compressed air as the medium to apply a certain pressure to the internal cavity or external surface of the product under test. Then, high-sensitivity sensors are used to detect pressure changes, thereby determining the seal integrity of the tested product. Since it uses compressed air as the medium, it causes no secondary pollution to the product. Furthermore, its testing speed and accuracy are superior to water testing methods (as air molecules are smaller than water molecules, allowing for faster leak detection). Consequently, it can be deployed on a large scale in production lines. Currently, traditional leak testers are categorized based on their sensor principles into: Direct Pressure type, Differential Pressure type, Flow type, and Quantitative Analysis type.

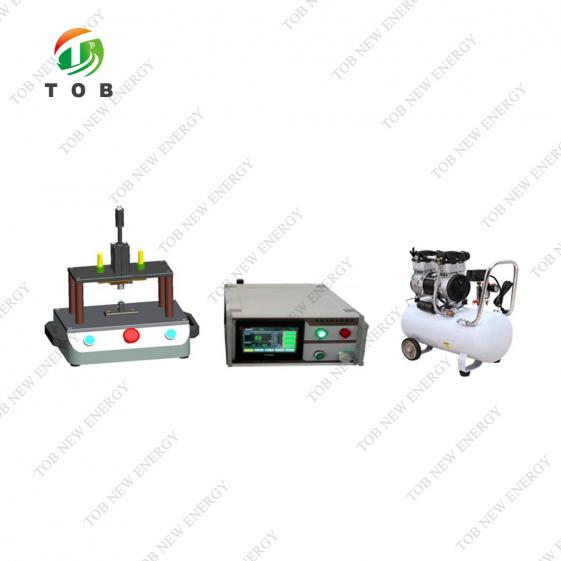

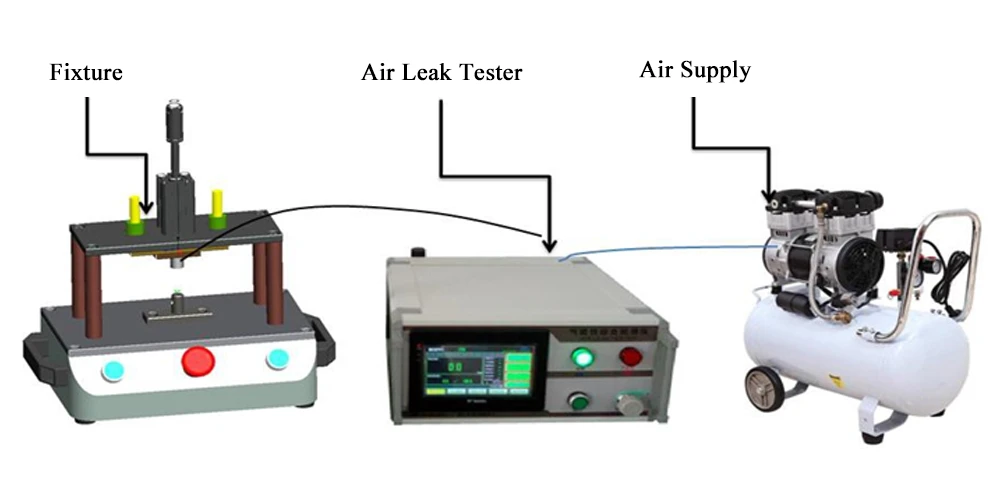

Air Leak Tester

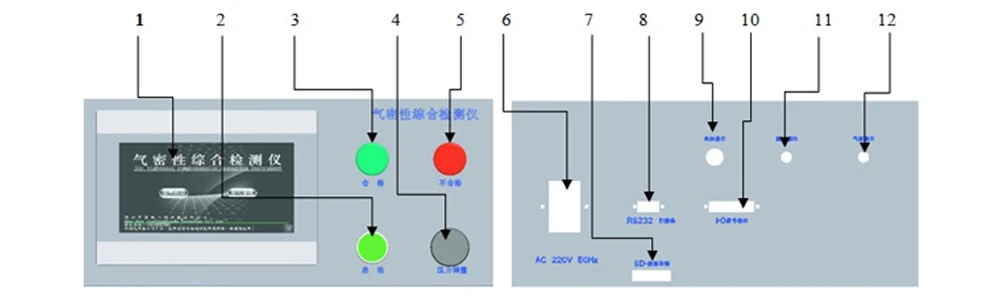

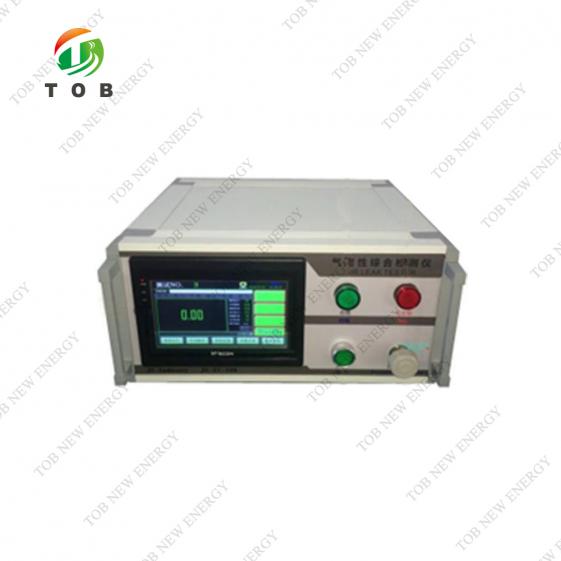

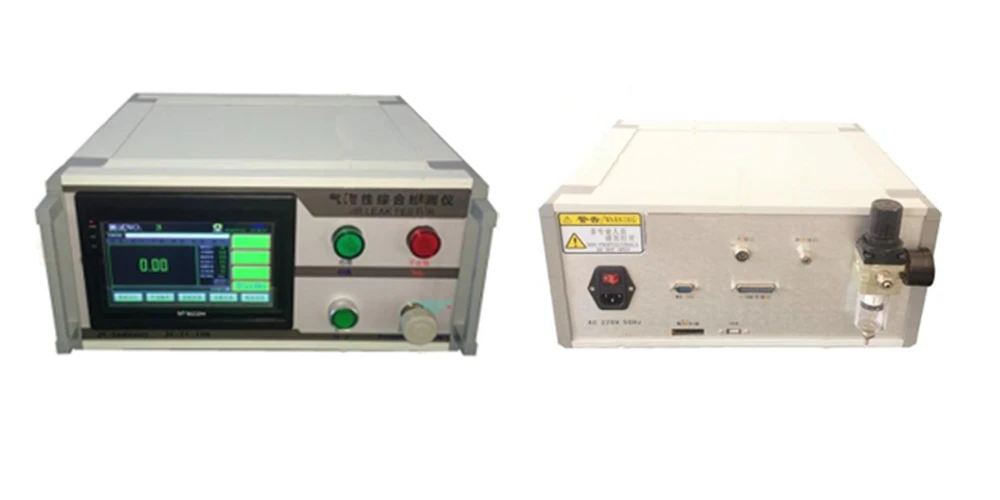

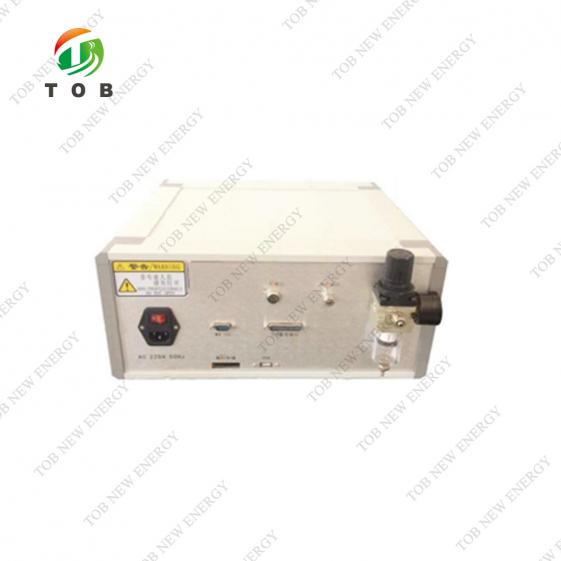

Structure and Component Names

No.	Name
1	7-inch Touch Main Control Screen
2	Start Test Button
3	Pass Indicator Light
4	SMC Pressure Adjustment Knob
5	Fail Indicator Light
6	Power Socket
7	USB Data Card Slot
8	RS232 Interface
9	External Control Interface
10	I/O Signal Interface
11	Test Port
12	Air Source Connection Port (Filter)

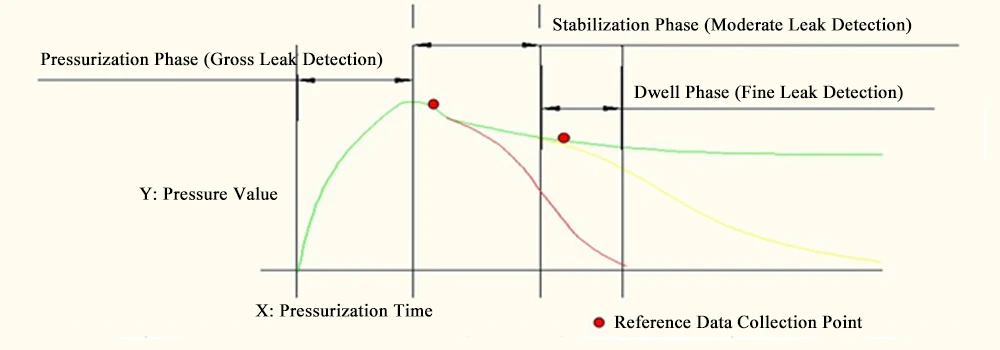

Schematic Diagram of Detection and Analysis Curve

Schematic Diagram of Detection and Analysis Curve

Technical Parameters Table

Direct Pressure Series (Positive Pressure): For products with holes or openings, performing inflation tests into the internal cavity.

Model	TOB-ZY-20	TOB-ZY-50	TOB-ZY-100	TOB-ZY-200	TOB-ZY-600	TOB-ZY-1000
Test Pressure	5kPa～20kPa	5kPa～50kPa	5kPa～100kPa	5kPa～100kPa	5kPa～100kPa	10kPa～800kPa
Standard Accuracy	1Pa	10Pa	10Pa	50Pa	50Pa	100Pa
High Accuracy	1Pa

Direct Pressure Series (Negative Pressure): For products with holes or openings, performing evacuation tests from the internal cavity.

Model	TOB-FY-50	TOB-FY-100
Test Pressure	5kPa～50kPa	5kPa～80kPa
Standard Accuracy	10Pa
High Accuracy	1Pa

Quantitative Series: For products without holes, applying pressure to the external surface.

Model	TOB-DL-100	TOB-DL-200	TOB-DL-500	TOB-DL-1000
Test Pressure	5kPa～100kPa	5kPa～100kPa	10kPa～500kPa	10kPa～800kPa
Display Accuracy	1Pa

Air Leak Tester Parameters

Parameter	Specification
Testing Accuracy	0.2% FS (Sensor)
I/O Interface	Start, Stop, Pass, Fail, 1# Drive, 2# Drive, and other signal outputs
Operating Air Supply	0.4MPa～1MPa Clean, Dry Compressed Air
Timer Range	1～999s (Adjustable)
Power Supply	AC220V±10% / 50Hz
Dimensions	350mm * 400mm * 180mm (LWH)
Weight	Approx. 10KG

Product Display

Air Leak Tester

Email : tob.amy@tobmachine.com

Phone number :+86 181 2071 5609
