8μm 12μm PE Battery Separator

This polyethylene separator is a class A battery PE separator, the surface is smooth and clean without pollution, and the length is 1000m.

Brand:
TOB NEW ENERGY
item no.:
TOB-PE-8/12
order(moq):
1
Payment:
L/C,T/T,Western Union,paypal
product origin:
China
Color:
white
shipping port:
XIAMEN
Lead Time:
7days

inquiry now

Product Detail

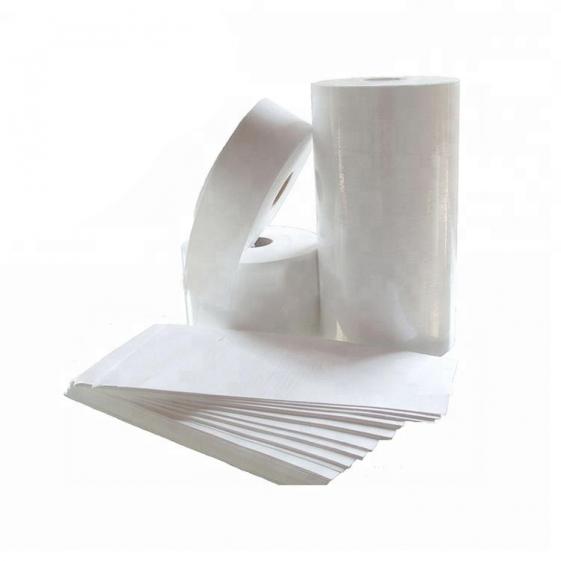

8μm 12μm PE Polyethylene Separator for Lithium ion Battery

SPECIFICATIONS

Length:1000m, width:455mm, Thicness:8μm Mode:TOB-PE-8

This polyethylene separator is a class A PE battery separator, the surface is smooth and clean without pollution, and the length is 1000m.

Project		Unit	Technical indicators
width		mm	455
Material			Korean single layer wet PE
Thickness		um	8.0±1.0
Coating thickness		um	0
Air permeability		Sec/100ml	120±50
Tensile strength	TD	Kg f/cm2	≥1000
Tensile strength	MD	Kg f /cm2	≥1000
Length		m	1000
Porosity		%	45±5
Puncture strength		G	≥300
Heat shrinkage rate 130℃/1h	TD	%	≤1.5%
Heat shrinkage rate 130℃/1h	MD	%	≤2.5%
Heat shrinkage rate 90℃/1h	TD	%	≤1.0%
Heat shrinkage rate 90℃/1h	MD	%	≤2.0%

TOB-PE-12*50.5*1000

Project		Unit	Technical indicators
width		mm	50.5±0.2
thickness		um	12±1.5
Air permeability		Sec/100ml	150±50
porosity		%	40±5
Puncture strength		G	≥450
Areal density		g/m2	7.0±1.0
90℃±2/2h Heat shrinkage rate	TD	%	≤1.5
90℃±2/2h Heat shrinkage rate	MD	%	≤4.0
tensile strength	TD	Kg f/cm2	≥150
tensile strength	MD	Kg f /cm2	≥100

PACKAGE

pe separator

Learn more other battery separator from TOB NEW ENERGY

Email : tob.amy@tobmachine.com

Skype : amywangbest86

Whatsapp/Phone number : +86 181 2071 5609
