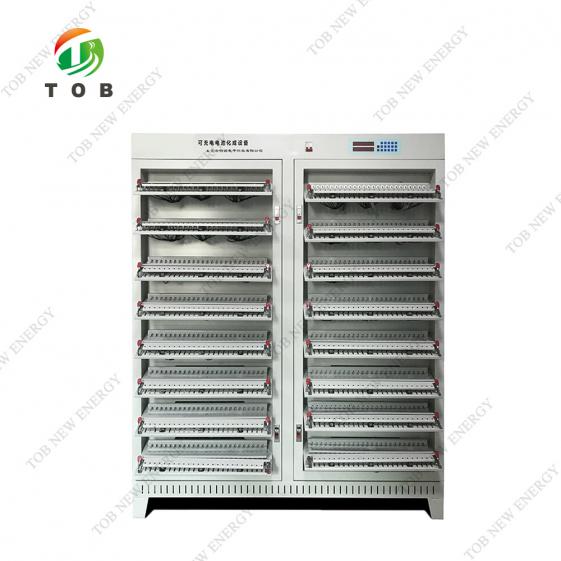

TOB-ED800-1K 5V1A Battery Forming and Grading Machine is mainly composed of computer, communication interface and battery formation cabinet. The battery formation cabinet is composed of a plate body including a fixture and a fixture, a constant current, a constant voltage source, a single-chip microcomputer and a control panel.
Brand:
TOB NEW ENERGYitem no.:
TOB-ED800-1Korder(moq):
1setPayment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMENLead Time:
305V1A Cylinder Battery Cell Forming and Grading Machine For Lithium Ion Battery Testing
SPECIFICATIONS
1.The Basic composition
This equipment is mainly composed of computer, communication interface and battery formation cabinet. The battery formation cabinet is composed of a plate body including a fixture and a fixture, a constant current, a constant voltage source, a single-chip microcomputer and a control panel.
2. The main performance
Number of equipment channels: a total of 800 channels in the whole machine.
Workflow control mode: whole machine control.
Charging mode: constant current, constant voltage.
Charging cut-off conditions: time.
Constant current and constant voltage source: Each battery has an independent constant current and constant voltage source, and its own circuit does not affect each other. PWM charging energy-saving mode is adopted to effectively reduce heat generation and power consumption.
Protection function: Each battery has a voltage upper limit protection function to ensure that each battery is charged to the required voltage.
Current and voltage settings: Charging current is centrally controlled and adjusted, which can be set by computer software or keyboard operation.
Process settings: The upper computer can set 20 step parameters, and the charging and other functions can be completed offline through keyboard operation.
Power-down protection: With power-down protection function, the original workflow can continue to run after the call.
Voltage screening: After charging, low-voltage cells can be screened.
3. Main technical parameters
|
Channels No. |
800 |
|
Workflow control method |
Whole Cabin control (Single-point constant current, constant voltage mode) |
|
Charging model |
Charging energy-saving mode: constant current, constant voltage charging |
|
Charging cut-off conditions |
Time |
|
Current range |
Charge 3mA-1A, resolution 1mA |
|
Current accuracy |
±0.1%RD |
|
Voltage measurement |
0~4999mV |
|
Time Set Range |
0~999 minutes can be set arbitrarily, the time unit is min |
|
Time accuracy |
≤±0.1% |
|
Clamp type |
Cylindrical four-wire method quick push clamp type (with bracket) |
|
Supported battery types |
Cylindrical Cell |
|
Clamp height adjustable range |
Cylindrical Cell |
|
Working power |
AC220V±10%，50HZ，Power consumption≤5KW |
|
Communication method |
RS232，Baud rate4800 |
|
Equiment shape reference size (mm) |
1650 (L)×500(W)×1914 (H) (For reference only, the actual equipment shall prevail) |
|
Working environment |
Temperature: 0-40℃, related temperature≤85% |
|
Full load operating current |
Phase line up to 30A |
|
Equipment Weight |
About 200kg |
4. CP System main configuration requirements
Minimum configuration of computer system: CPU above P4, memory above 2G, hard disk space above 200G, EGA/VGA color display, one CD-ROM, one mouse, MicrosoftTM Windows XP or above operating system, one available RS232 serial communication port, Windows support printer. The computer system need prepare by user, and the number of microcomputer systems is determined according to actual needs
