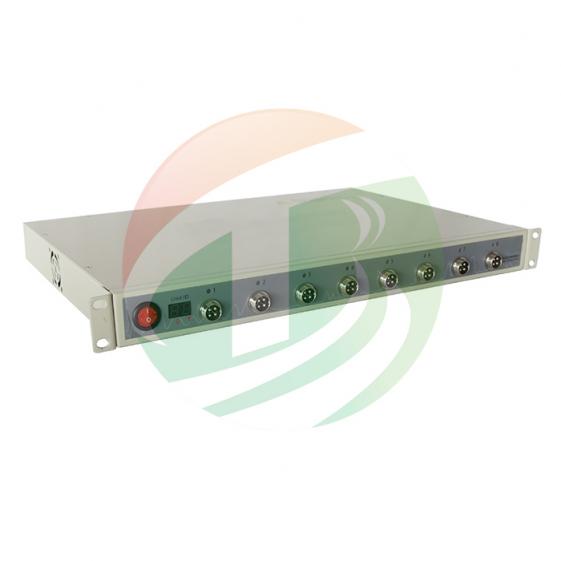

5V10mA Button Cell tester With Three Testing Range

Model

TOB-CT-4008-5V10mA-164

Voltage

AC 220V ±10%, 50Hz

Resolution

AD: 16bit  DA: 16bit

Input Resistance

≥1 GΩ

Input Power

25W

Voltage

Constant Voltage Range

25mV-5V

Discharge Min Voltage

-5V

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS

Current

Per Channel Current Range

Range 1: 5uA-1mA, Range 2: 1mA-5mA, Range 3: 5mA-10mA

Accuracy

± 0.05% of FS

Constant voltage cutoff current

Range 1: 2uA, Range 2: 0.01mA, Range: 0.02mA

Stability

± 0.05% of FS

Power

Per Channel Output Power

0.05W

Stability

± 0.1% of FS

Time

Current Response Time

<500us (10%FS-90%FS)

Step Time Range

≤(365*24 )hour/step,

Time Form Support 00 : 00 : 00 : 00 (h min s ms)

Data Recording

Record Condition

Minimum Time Interval: 100ms

Minimum Voltage Interval: 10mV

Minimum Current Interval

Range 1: 2uA, Range 2: 0.01mA, Range 3: 0.02mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge, Constant Voltage Charge, Constant Current and Constant Voltage Charge, CPC

End Conditon

Voltage, current, relative time, capacity, -△V

Discharge

Discharge Mode

CCD, CPD, CRD, CVD, Constant Current and Constant Voltage Discharge

End Condition

Voltage, Current, Relative Time, Capacity, -△V

Pulse

Charge

CCC, CPC

Discharge

CCD, CPC

Min Pulse Width

500ms

Pulse number

A single pulse step supports 32 different pulses

Automated Switch

Automated swith from charge to discharge for each pulse

End Condition

Voltage, Test Time

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function, Max Support 3 Layers

Protection

Software Protection

Power-down Data Protection

Off-line Testing Function

Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time

Hardware Protection

Additional Anti-reverse Protection Model

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

DCIR testing

Support

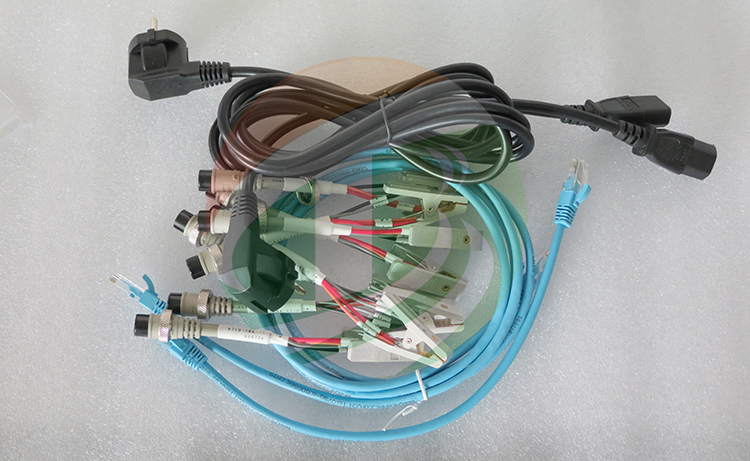

Voltage and Current Testing Sample

4-wire connecting

Noise

<45dB

Database

MySQL Database

A Means of Communication of Upper Machine

TCP/IP Protocol

Data Output

EXCEL、TXT、Graph

Communication Interface

Ethernet Port

Per Unit Main Channels No.

8

Dimensions

483*310*48(mm)
