300 Mpa Laboratory Compact Cold Isostatic Pressing Machine

The cold isostatic pressing (CIP) machine used for laboratory powder pressing. It is with a 30mm ID hydraulic chamber made by ultra strength stainless steel, which can provide isostatic pressure up to 300 Mpa.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-NL-20D(J)
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

300 Mpa Laboratory Compact Cold Isostatic Pressing Machine


SPECIFICATIONS


The cold isostatic pressing (CIP) machine used for laboratory powder pressing. It is with a 30mm ID hydraulic chamber made by ultra strength stainless steel, which can provide isostatic pressure up to 300 Mpa. It is an excellent tool to prepare high-density compound pellet and small diameter rod.

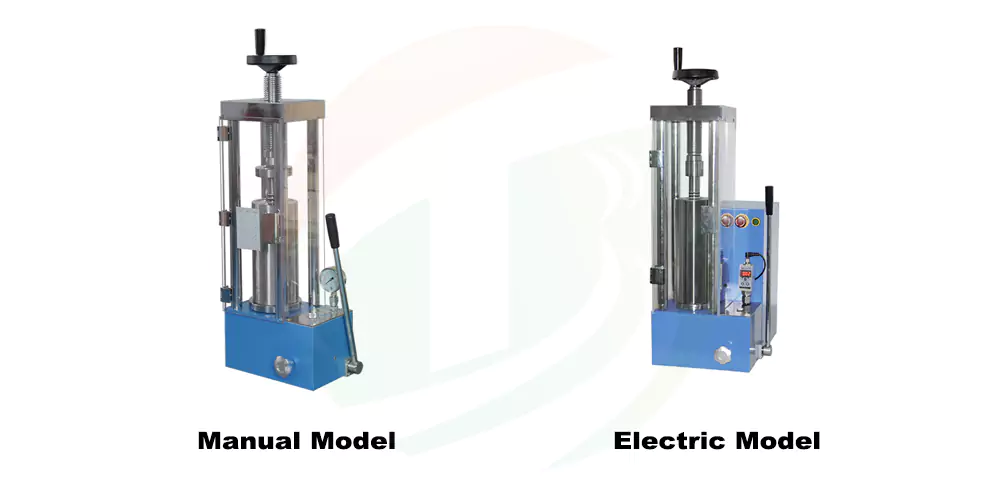

TOB-NL-20DJ is the manual and electric control together model, customer can choose the machine according to budget.


300 Mpa Laboratory Compact Cold Isostatic Press Machine

Model

TOB-NL-20D Manual model

TOB-NL-20DJ Electric model

Pressure range

0~20T(0-21MPa)

Piston Diameter

Chrome plated cylinder Φ110mm

Structure

 Integral structure, without sealing connection, reduce oil leakage point

Operating mode

Manual

Electric /Manual

Pressure gauge

Double scale display pointer meter

Piston stroke

40mm

Protection cover

Organic glass

Environment temperature

10~40 degree

CIP Pressure range

0~300MPa

CIP Tank dimension

Φ30×120mm

Dimension

305*195*600mm

305×430×600mm

Gross Weight

About 100Kg

About 120kg

Power supply

\

AC220V/50HZ


PRODUCT DISPLAY


Cold Isostatic Pressing Machine

Cold Isostatic Pressing Machine

Cold Isostatic Pressing Machine
