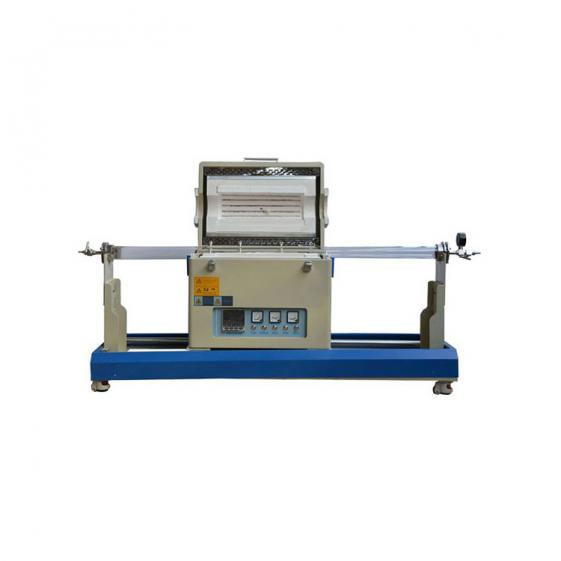

1200 ℃ single-temperature zone rapid heating furnace

TOB-SHYT-1200X is a single zone rotary tube furnace is designed for calcining inorganic compound with better uniformity.

The TOB-OTL1200 Modeltube furnaceis a single zonequartz tube furnacewhich can achieve faster heating up to 1200c. It adopts electric resistance wire as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.

The TOB-KTL1400 Modeltube furnaceis ahorizontal tube furnaceadopts Silicon carbide as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.

1600°C Single Zone Laboratory Tube Furnace with Vacuum Flanges and Corundum Tube SPECIFICATIONS The TOB-KTL1600 Modeltube furnaceis ahorizontal tube furnaceadopts Silicon molybdenum as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment. It is the ideallaboratory equipmentfor universities, research institutes, industrial and mining enterprises to do High temperatureatmosphere sintering, Atmosphere reduction, CVD experimental, vacuum annealingsuch as for preparing nano materials and film. Model Tube Size Power Dimension (L*W*H) Voltage Heating Zone  Length Max Heating  Temperature TOB-KTL1600-I Φ60*1000mm 4kw 650*450*670mm AC110V/220V 260mm 1600℃ TOB-KTL1600-II Φ80*1000mm 4kw 650*450*670mm TOB-KTL1600-III Φ100*1000mm 4kw 650*500*700mm Heating element 1800 type Silicon molybdenum Temperature controller 40 program temperature control system, With over temperature, broken accidentally protection function, 6 groups of PID adjustment Control precision of + / - 1 ℃ Furnace chamber 1800 type Polycrystal alumina fiber Tube material 99 alumina tube Vacuum Flange &  Fitting Ports Stainless steel flange with Gas nozzle, valve, pressure gauge Pressure measure  system Pressure gauge (Resistance vacuum gauge can be chosen according requirements) Air intake control Flow meter (Protons flow controller can be chosen according requirements ) Vacuum system Vacuum pump can be chosen Warranty One year limited warranty with lifetime support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

1700 Degree High Temperature Sintering Muffle Furnace With 40 Segments Programmable Temperature Controllers SPECIFICATIONS The TOB-KTL1700laboratory tube furnaceis ahigh temperature sintering muffle furnaceadopts Silicon molybdenum rods as heating element with max temperature 1700℃. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment. Thislaboratory tube furnaceis the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do High temperature atmosphere sintering, Atmosphere reduction, CVD experimental, vacuum annealing such as for preparing nano materials and film. Model Tube Size Power Dimension (L*W*H) Voltage Heating Zone  Length Max Heating  Temperature TOB-KTL1700-I Φ60*1000mm 4kw 650*450*670mm AC110V/220V 260mm 1700℃ TOB-KTL1700-II Φ80*1000mm 4kw 650*450*670mm Heating element 1800 type Silicon molybdenum rods Temperature controller 40 program temperature control system, With over temperature, broken accidentally protection function, 6 groups of PID adjustment Control precision of + / - 1 ℃ Furnace chamber 1800 type Polycrystal alumina fiber Tube material 99.8 high purity alumina tube Vacuum Flange &  Fitting Ports Stainless steel flange with Gas nozzle, valve, pressure gauge Pressure measure  system Pressure gauge (Resistance vacuum gauge can be chosen according requirements) Air intake control Flow meter (Protons flow controller can be chosen according requirements ) Vacuum system Vacuum pump can be chosen Warranty One year limited warranty with lifetime support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Compact Vacuum Induction Melting Furnace For Metal Material Melting Processing in Lab SPECIFICATIONS TOB-VMF-LABVacuum Induction Melting Furnaceis widely used in colleges, universities and scientific research units to do Metal materials melting processing under the condition of vacuum or protective atmosphere. Such as stainless steel, nickel base alloy, copper, alloy steel, nickel and cobalt alloys. It can also be used for alloy steel vacuum refining processing and precision casting. Model Vacuum Induction Melting Furnace   TOB-VMF-LAB Limited cold vacuum degree 5×10﹣3Pa Heating temperature 1700℃ Power 20KW Crucible capacity 1000g (molten) Rate of pressure rise ≤2Pa/h Medium frequency power supply IGBT Structure All stainless steel design, Horizontal type furnace structure,  Side door structure, easy for material in and out ,  compact dimension with smaller space. Warranty One year limited warranty with lifetime support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Main uses: ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, special materials, building materials, universities, research institutes, industrial and mining enterprises to do powder roasting, ceramic sintering, high temperature experiments, material processing, quality universities, research institutes Industrial and mining enterprises do high temperature atmosphere sintering, atmosphere reduction, CVD experiments, vacuum annealing and so on.

1200℃ Mini tube furnace SPECIFICATIONS The tube furnace appearance is small, high quality resistance wire heating element, Using double-shell structure and 30 program temperature control instrumentation, Zero trigger, SCR control, furnace polycrystalline alumina fiber material, stainless steel flanges tube ends can be sealed, Installation on a stainless steel flange has a gas nozzle, valve and pressure gauge,  the vacuum can reach to 10-3 Pa,Balanced with the temperature field, the surface temperature is low,  lifting the temperature and rate, energy saving,Colleges and universities, research institutes,  industrial and mining enterprises to do high-temperature sintering atmosphere, reducing atmosphere,  CVD experiment, vacuum annealing with the ideal product. Model TOB-DSP-1200℃-S-I TOB-DSP-1200℃-S-II Power 1.5 KW 1.5 KW Furnace tube size(mm) Dia 25(OD) X700 /600mm Dia50(OD)X700/600mm Dimension 340X290X415 340X290X415 Power supply voltage 220V Phase number Single-phase Heating element High-resistance wire Control mode 1,30 sections of the program can only PID temperature regulation. 2,over-temperature protection, over-temperature protection  burnout or burnout furnace heating circuit automatically cut off ,  (when the furnace temperature exceeds 1200 degrees or thermocouple burns out,  the AC relay on the main circuit will automatically disconnect the main circuit off,  the panel lights off oN, OFF lights, limited protection EAF). 3, with 485 communication interface (when an optional software standard) 4, with power protection function, namely, electrical power and then to start the stove,  the program does not start from a starting temperature rise,  but began to rise from the furnace power outage. 5, the instrument with a temperature self-tuning features Temperature control mode Intelligent PID Control accuracy +/- 1 ℃ Trigger Zero trigger SCR 106 / 16E Germany Simon Kang Max temperature 1200 ℃ Rated temperature 1100 ℃ Heating rate ≤30 ℃/ Min (Available upon request modification) Heating length 205mm Recommended heating rate ≤15  ℃/ Min Vacuum degree (Optional) 1.General vacuum and drive gas out by:TW-1.5A 2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa 3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa  (and equipped with a resistive vacuum gauge display) Certification CE Surrounding surface temperature ≤45℃  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
