1100℃ Laboratory Inert Gas Muffle Furnace

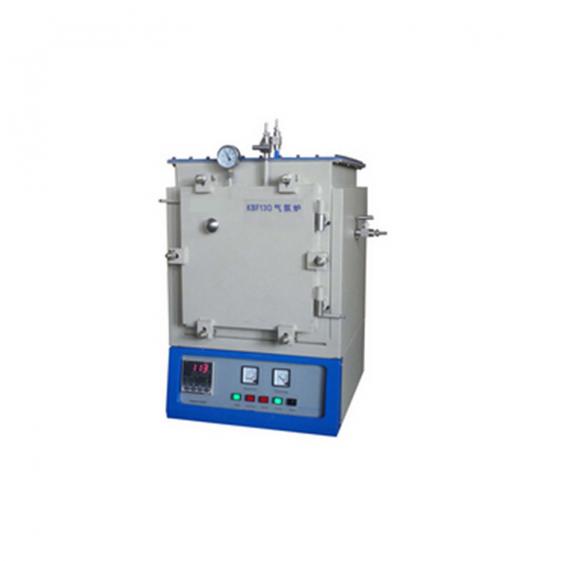

1300 Degree Inert Atmosphere Muffle Furnace For Powder Materials Atmosphere Sintering SPECIFICATIONS The TOB-KBF13Q Inert Atmosphere Muffle Furnace adopts Silicon carbide as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment. ThisAtmosphere muffle furnaceis the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do atmosphere Sintering , Atmosphere reduction. Model Dimension (D*W*H) Power Voltage Max Heating  Temperature TOB-KBF13Q-I 160*150*150mm 3kw AC110V/220V 1300℃ TOB-KBF13Q-II 200*200*200mm 6kw TOB-KBF13Q-III 300*200*200mm 8kw TOB-KBF13Q-IV 300*250*250mm 10kw 380V TOB-KBF13Q-V 400*300*300mm 13kw Heating element Silicon carbide Temperature controller 40 program temperature control system, With over temperature, broken accidentally protection function, 6 groups of PID adjustment Control precision of + / - 1 ℃ Furnace chamber  Polycrystal alumina fiber Pressure measure  system Pressure gauge  Air intake control Flow meter Air source H2, Ar, N2, O2, CO, Etc. Warranty One year limited warranty with lifetime support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

1600℃ High Temperature Muffle Furnace For Powder Materials Atmosphere Sintering SPECIFICATIONS The TOB-KBF16Q High Temperature Muffle Furnace adopts Silicon carbide as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment. ThisAtmosphere muffle furnaceis the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do atmosphere Sintering , Atmosphere reduction. Model Dimension (D*W*H) Power Voltage Max Heating  Temperature TOB-KBF16Q-I 160*150*150mm 3kw AC110V/220V 1600℃ TOB-KBF16Q-II 200*200*200mm 6kw TOB-KBF16Q-III 300*200*200mm 8kw TOB-KBF16Q-IV 300*250*250mm 10kw 380V TOB-KBF16Q-V 400*300*300mm 13kw Heating element Silicon carbide Temperature controller 40 program temperature control system, With over temperature, broken accidentally protection function, 6 groups of PID adjustment Control precision of + / - 1 ℃ Furnace chamber  Polycrystal alumina fiber Pressure measure  system Pressure gauge  Air intake control Flow meter Air source H2, Ar, N2, O2, CO, Etc. Warranty One year limited warranty with lifetime support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

1700 ℃ atmosphere chamber furnaces SPECIFICATIONS Model TOB-DSP-GF1700-I TOB-DSP-GF1700-II TOB-DSP-GF1700-III TOB-DSP-GF1700-IV TOB-DSP-GF17-V Power 3KW 5KW 7 KW 9KW 13 KW Furnace tube size(mm) 160X150X150 200X200X200 300X200X200 300X250X250 400X300X300 Dimension 550X 470X860 600X 510X910 600X610X940 650X 610X990 700X 710X1355 Power supply voltage 220V 380V Phase number Single-phase Heating element 1800 type silicon molybdenum rod Temperature control mode 一.Yudian temperature control 30 sections can only use PID temperature regulation. 二.FP93 temperature control (from Japan) (Replace imported instruments, for an additional fee) 1,40 section program temperature control can be divided into 4,2,1 group program,  if the program is divided into four groups, each program segment 10, 2,6 group PID control, low, medium and high temperature can each with a set of PID,  such that each segment is capable of controlling the temperature is very accurate. Control accuracy +/- 1 ℃ Triggers 1.Phase trigger (with soft start and current limiting function) 2.Current limiting function: no matter how to adjust the heating time,  our furnace transformer secondary current through the post is limited to 160A,  limited protection of equipment, no matter how you operate, the device will not burn. 3.Soft-start function: When the power current will slowly increase, the impact on the heating element is small, help extend the life of the heating element SCR 106 / 16E Germany Semikron Max temperature 1700 ℃ Rated temperature 1650 ℃ Heating rate ≤20 ℃ / Min (available upon request modification) Recommended heating rate ≤10 ℃ / Min   Thermocouple Type Type B Certification CE Surrounding surface temperature ≤45℃ Maximum temperature use in a variety of atmosphere  Atmosphere Max temperature NO2,CO2,O2,Air 1700℃ He,Ar,Ne 1650℃ SO2 1600℃ CO,N2 1500℃ Wet H2 1400℃ Dry H2 1350℃  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

1600 ℃ atmosphere chamber furnace

1400 ℃ atmosphere chamber furnace

1100 ℃ atmosphere chamber furnace

1400 ℃ vacuum box atmosphere furnace

1700 ℃ Vacuum atmosphere furnace of hydrogen
