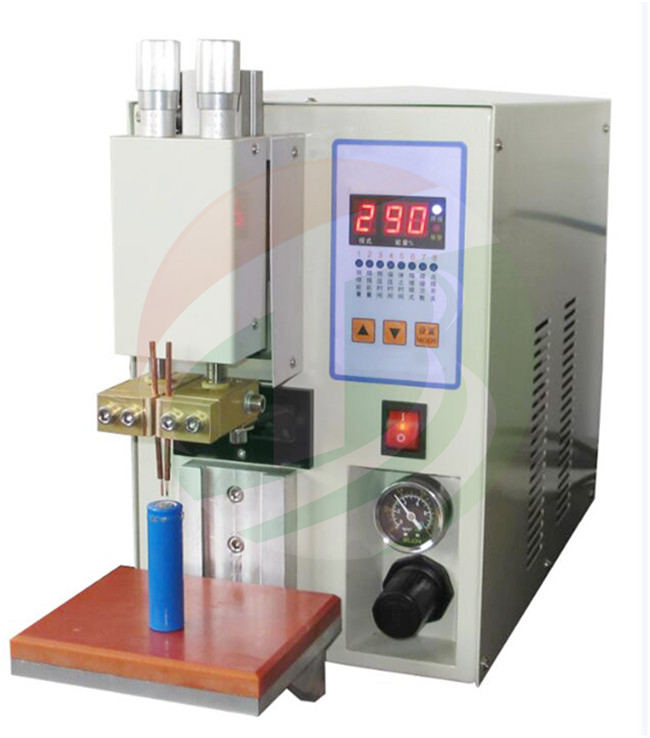

The spot welding machine is mainly used for 18650 cylinder call pack welding, it can weld Nickel tab thickness from 0.02-0.2mm with good welding effect.
The Pneumatic model is with smaller volume and weight, easy for international shipping.
Sinlge point needle can be used for Ni tab weld with Stainless steel case.
|
Control mode |
Pneumatic |
|
Welding current |
3000A |
|
Welding power |
0-99% adjustable |
|
Welding method |
Double pulse |
|
Maximum output power |
15KVA |
|
Voltage supply |
AC 220V±10% 50Hz±2Hz |
|
Welding way |
Ordinary welding and continuous automatic welding |
|
Time setting |
0-2.55s |
|
Automatic counting function |
yes |
|
Weight |
30kg |
|
Dimensions |
550*250*360mm |
|
Package weight |
40kg |
|
Package size |
630*330*430mm |
TOB NEW ENERGY which has 15 years experience in lithium battery industry. We supply full kinds of lithium battery making equipment and material, we have ability to build lithium battery production line for our clients. We have cooperated with many famous company, such as Apple, Sumsang, 3M, SKC etc.
Welcome to join us!
