Grooving Machine For Cylindrical Battery Shipment To Customer

Jan 05,2017

Grooving Machine For Cylindrical Battery Shipment To Customer

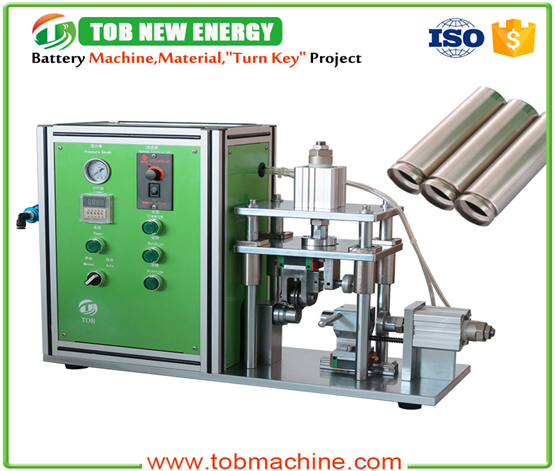

Semi-auto grooving machine with CE certification is an desktop battery grooving machine, It is used for grooving various cylindrical cell cases including CR123,18650 26650,32650 cells with customized grooving die.This machine can also be used for aluminum shell capacitor uniform automatic roll groove.

The specification as below:

1. Source voltage: 110V-220V AC, 50/60Hz Single Phase

2. Power: 140W

3. Warranty: one year limited with lifetime support

4. Grooving depth: 1.2-2.0mm adjustable

5. Grooving width: 1.1-1.5mm

6. Grooving precision: ±0.1mm

7. Knife life: >100 0000times

8. Air supply : 0.5-0.7MPa

9. Dimension: 600*450*350mm

10. Weight: 68kg

This machine is hot sale one, On Jan,4th,2017. we have just sold one battery grooving machine to Finland. And during using, we will provide professional technical support for free.

   Our customer take great confidence in us, and it’s the greatest encouragement for TOB.TOB also supply all battery producing lab researching machine and battery raw materials.

We have specialized in this field for 15 years,and some battery machine product are the standard in battery industry,our target is to be Top Of the Best.

If you want to know more battery grooving machine: http://www.tobmachine.com/Grooving-Machine-For-Cylinder-Cell_p100.html

battery grooving machine

18650 battery grooving machine

Any need or technical inquiry, please contact me freely:
