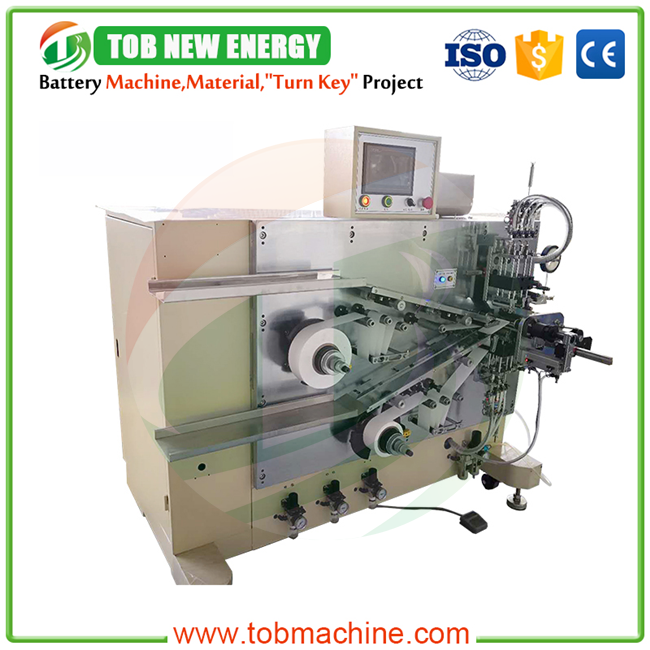

Cylindrical battery semi-automatic winding machine

Description

The semi-automatic winding machine is mainly used for the precision winding of core of the cylinder battery.

The working process is as follows:manually guide the cathode and anode electrodes into the winding part, and separated stacking with the separator, and the winding will be carried out according to the requirements of the process, automatically attaching the termination tape, and the cell will automatically feed.

Function and Features

1. Adopt single needle counter winding needle structure.

2. Manual lead-in electrode, automatic winding, automatic change needle, automatic tape ending tape and automatic unloading;

3. The adhesive tape adopts the horizontal paste (the tape is perpendicular to the tab), the adhesive is flat, and the adhesive position can be controlled accurately without tightening the cell; the adhesive is stable and reliable;

4. winding needle speed was adjustable;

5. Two rolls of separator active to unwinding, tension push switch control technology can adjust tension automatically during winding.

6. It has a dust removal device;

7. Separator outer pack end.

8. The cell after winding without damage, core pulling and electrode dislocation phenomenon;

9. Easy to operate,adjust and replace;

If you want to know more details about this machine, please feel free to contact me.
