Comparison of APR30 and PS250 spot welding machine for 18650pack

Jan 20,2017

Comparison of APR30 and PS250 spot welding machine for 18650pack

Two product both are used for spot welding 18650 cylinder pack battery.

APR30 can weld Nickel tab thickness from 0.02-0.2mm.

PS250 can weld Nickel tab thickness from 0.05-0.25mm.

We also have the other machine can weld thickness to 1mm.

Website:  www.tobmachine.com

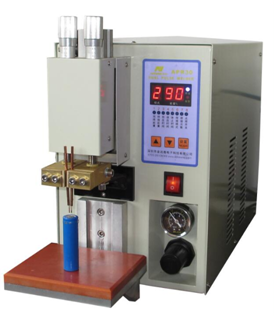

APR30 pneumatic spot welding machine for 18650 cylinder pack welding

battery welding machine

This pneumatic spot welding machine is mainly used for 18650 cylinder call pack welding, it can weld Nickel tab thickness from 0.02-0.2mm with good welding effect.

The Pneumatic model is with smaller volume and weight, easy for international shipping.

1 Microcomputer control, CNC current adjust

2 High precision welding power

3 Digital tube display, keyboard control, welding parameters flash storage.

4 Double pulse welding, make welding more firmly.

5 Small welding sparks, solder joint uniform appearance, the surface is clean

6 Welding times can be set

7 Can set preloading time, the holding time, time to rest,  the welding speed can be adjusted.

8 Large power, stable and reliable.

9 Double needle pressure adjustable separately, Suitable for different thickness of Nickel strip.

Model

TOB-ARP30

Control mode

Pneumatic

Welding current

3000A

Welding power

0-99% adjustable

Welding method

Double pulse

Maximum output power

15KVA

Voltage supply

AC 220V±10% 50Hz±2Hz

Welding way

Ordinary welding and continuous automatic welding

Time setting

0-2.55s

Automatic counting function

yes

Weight

30kg

Dimensions

470*220*320mm

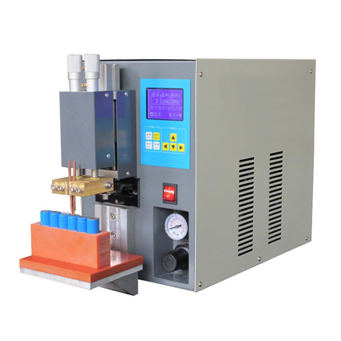

PS250 Spot welding machine for 18650 battery pack tab welding

Battery welding machine PS250

Dual pulse welding:

This TOB-PS250 Spot welding machine mainly used for 18650 battery pack tab welding, it can weld Nickel tab thickness from 0.05-0.25mm. You can also choose our other model according to your tab Thickness.

Dual pulse welding, the first pulse is used to the workpiece surface coating and oxide removal, and make the contact place in welding electrode produce slight deformation, improve the effective contact area, the second pulse is used to ontology metal welding, can effectively promote the quality of welding and reducing welding spatter.

Control model:

1. CPU control, precision pulse energy Adjustable(0-99.9%), preloading time and the holding time Adjustable(0-2.55s)

2.Two different ways of welding, (1) ordinary welding; (2) continuous welding.

3. The built-in welding counter, all solder joints can be calculated

4. Data storage block using EEPROM, no battery life problem, every time you boot, go back to Last using the welding procedure.

Multiple fault protection

High power circuit and control circuit of welding machine, is equipped with two sets of different kinds of protection circuit, in order to prevent the equipment from overheating, outside pressure and power fluctuations butt welding machine interference, in order to protect the welder in harsh environment. For some common fault prompt functions, welding machine overheating and damage, will automatically alarm, and at the same time to cut off the power supply.

Precision welding head design

1. Adopt cylinder combined with spring buffer, make the two welding needle can adjust pressure when welding, because of the spring buffer action, the cylinder does not directly effect on the solder joints, to effectively protect welding plane.

2.Inside of machine head adopts photoelectric pressure switch, only if the two welding needle discharge welding pressure to achieve the set pressure, to protect the reliability of the welding, and double needle pressure can be adjusted.

Unique structure

1. The workbench stepless lift, convenient to precision adjust the position

2. Unibody design, pneumatic operation, easy operating

Model

TOB-PS250

Power

15KVA

secondary side of welding current

3000A

Secondary no-load voltage

5.5V

Input voltage

220V

Input frequency

50Hz

Working pressure

0.5-0.8Mpa

Welding pulse

Single pulse, double pulse, multiple pulse programmable

Welding control model

Foot switch control

Weight

30KG

Sizes(L*W*H)

400*220*360mm
