Hard Carbon for Na-ion Battery

Oct 18,2017

Hard Carbon for Na-ion Battery

Sodium ion batteries and lithium-ion batteries have similar principles and production processes, and sodium resources are widely distributed, in recent years has been widespread concern. Whether it is a lithium-ion battery or a Na-ion battery, the magnification performance is a key indicator of its performance. At present, sodium ion battery cathode material research and development has made important progress. However, for anode electrodes, the graphite electrode widely used in lithium ion batteries has no electrochemical performance in sodium ion batteries. Hard carbon material, also known as non-graphitizable amorphous carbon, is currently the best of many negative materials in the overall performance. Due to the high capacity of the material, stable cycle performance and a wide range of precursors, it will play an important role in the commercialization of sodium ion batteries. In recent years, with the different precursors, different structures and doping technology research, hard carbon as battery anode material, the performance has been further improved.

Here we are introduce some info of our Irregular Hard Carbon for your reference:

Item

Unit

Analysis Result

Method

Particle Size

D10

μm

4.9

Laser diffraction method: The particle size analyzer of the British Malvin2000

D50

μm

7.9

D90

μm

12.7

Dmax

μm

21.1

Tap Density

g/cm3

1.01

FZS4-4B type automatic tap density meter. Beijing iron and Steel Research Institute.

Reversible Capacity

mAh/g

250

Land test device from Wuhan

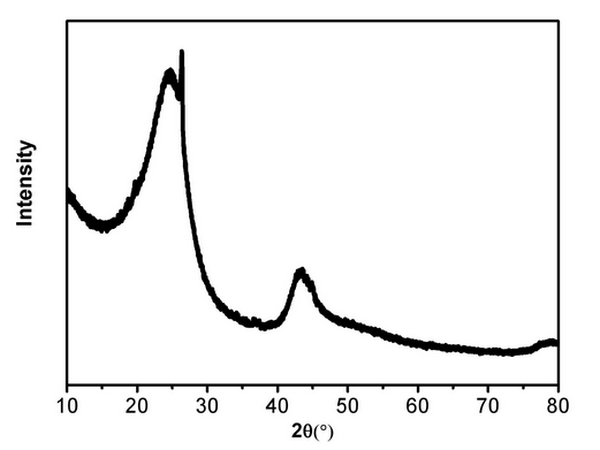

Figure1XRD pattern

Irregular Hard Carbon XRD Pattern

Figure2SEM image

Irregular Hard Carbon SEM Image

TOB NEW ENERGY which has 15 years experience in lithium battery industry. We supply full kinds of lithium battery making equipment and material, we have ability to build lithium battery production line for our clients. We have cooperated with many famous company, such as Apple, Sumsang, 3M, SKC etc.
