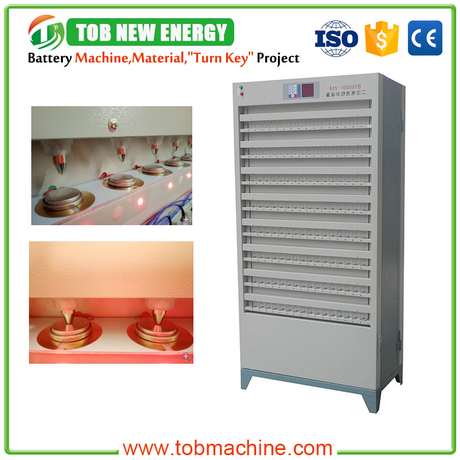

256 Channel Coin Cell Battery Formation and Grading Machine

256 Channel Coin Cell Battery Formation and Grading Machine

This equipment is mainly constituted by the computer system and control software, communication interface and battery detecting cabinet. The Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, micro controller programming and control panel.

The lithium ion battery tester is specially used for lithium ion coin cell battery Formation and grading.

Function and principle:

1.specifically for the requirements of the button-type lithium battery equipment design and manufacture, the entire cabinet can only meet the voltage range of 256 cells into the division and capacitance detection.

2.each channel has a separate constant current - constant pressure source, since the loop, do not affect each other.

3.modular structure, versatility, easy maintenance; non-contact control, high reliability.

4.software to adjust the current, voltage, convenient and reliable.

5.with data power-down protection, power can continue to run.

6.can record the complete charge and discharge voltage curve, current curve and data.

7.host computer can be set up to 40 steps and 999 cycles.

8.provide a variety of sorting methods, dozens of parameters can be included in the sorting conditions.

9.each set of host computer can connect 1-16 sets of single-chip system (recommended 10 sets of the following).

10.the next machine can stand or work online, offline work up to 26 hours
