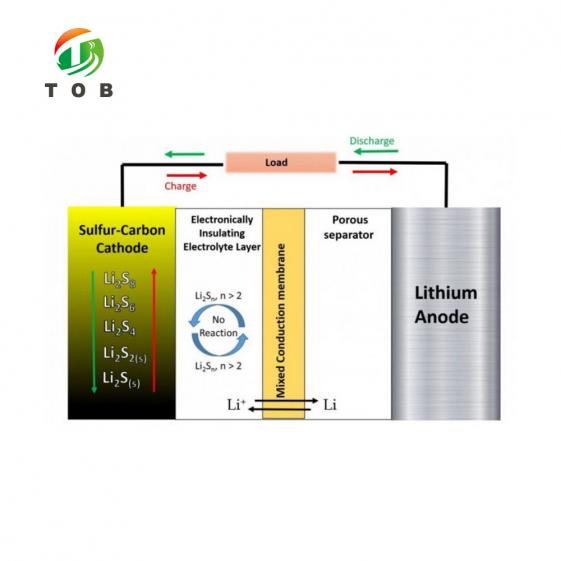

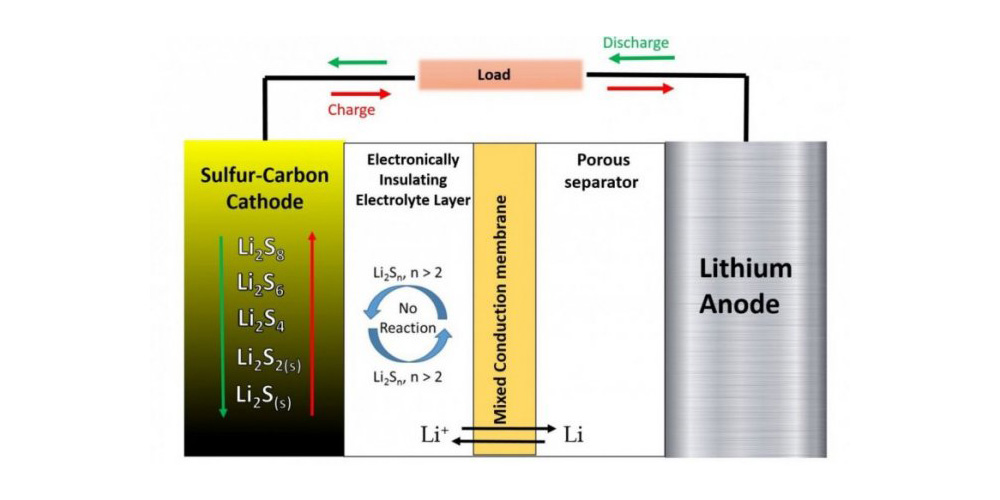

Lithium Sulfur Battery Pilot Line, Lab Line, Equipment and Materials Solutions

The LSM powder is the most used on the cathode side of the interconnect by plasma spraying.

This TOB-AW-3270C electrode winding machine is an automatic winding machine used for 60130 supercapacitor manufacturing, it is suitable for the other cylindrical cell winding process too.

Button super capacitor automatic production line SPECIFICATIONS Functional overview The production line is set automatically into the positive case, the negative case, the pole piece, the diaphragm, liquid injection, positive and negative combinations, fill pressure, sealing as one of the fully automated production lines. According to the user's process requirements, development, and manufacturing sections of semi-automatic production lines. Technical parameters Supercapacitor monomer diameter φ6.8 ~ 24.5mm  Supercapacitor monomer height 1.6 ~ 3.0rnm Pole piece width 8 ~ 200mm For the separator roll diameter <diameter 450mm For pole piece roll diameter <diameter 450mm For pole piece of material size  <200 * 200mm Production capacity 200pcs / min Total power 6KW The gas supply  0.4 ~ 0.7MPa Power 220V / 380V Dimensions (L * W * H) 7200 * 1350 * 1520mm  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Compact Manual Disassembling Machine For Cylinder Cell.

This TOB-ASMC-650A fully automatic cylindrical cells sealing machine is suitable for cylindrical cells sealing process after the electrolyte filling.

Automatic Electrolyte Battery Filling Using Conveyor System For Polymer Battery Filling System SPECIFICATIONS This Automatic Battery Filling System is automatic polymer battery filling machine, it includes Bar code scanning, weigh before filling, automatic injection electrolyte, automatic vacuum holding, automatic vacuum sealing, weigh after filling, automatic discharging, etc. Automatic battery filling system work process Model Automatic Battery Filling System TOB-AFMY-200 Source voltage AC220V, Single phase. Customized according country request Power 10KW Warranty  One year limited warranty with lifetime support Compressed air 0.6MPa  Output 6ppm, according to vacuum holding and sealing time Vacuum flow 350M3/hour Suitable battery size Length 130-285mm, Width 100-170mm, Thickness 8-11mm  Structure configuration  Trough body 3SET Battery rotating mechanism 1SET Automatic feeding mechanism 1SET Weight before filling 1SET Into the jig transfer institution 1SET Pour institutions without electric pump 1SET Vacuum holding box 3SET Vacuum pre-sealing 1SET Discharge transfer institution 1SET Weight after filling 1SET Automatic discharging device 1SET Automatic receiving institutions 2SET With PLC, Touch screen,    Driving motor 2SET Project control system 1SET CAM drive motor 2SET Vacuum holding box 1-99s can be set, with -95kpa vacuum degree Vacuum pre-sealing machine Sealing stamp width : 8mm Sealing head length : 300mm Sealing TEM : Max 260℃, adjustable Sealing Head parallelism : ±0.02mm Vacuum degree : -90KPa Dimension (L*W*H) 8000*1500*2400mm Weight 4000kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

TOB-ET54 series DC programmable electronic load provides 1mV/10mV, 1mA/10mA high resolution and precision with superior performance.

TOB-SCX-400 Manual pouch cell case forming machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.
