Manual Rolling Press Machine 100mm Width

This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-SG-100L
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail

Precision 4" (100mm) Width Manual Rolling Press Machine with Dual Micrometer For Lithium Battery Electrode Calendering


SPECIFICATIONS


1 TOB-SG-100L Lab Roll Press Machine is a Manual Rolling Press Machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

2 This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed


Model

4" Width(100mm) Manual Rolling Press Machine TOB-SG-100L

Warranty

One year limited manufacture warranty with lifetime support

Structure

1 Heavy duty steel frame, gears and handle

2 Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60) with

Cr electroplated coating

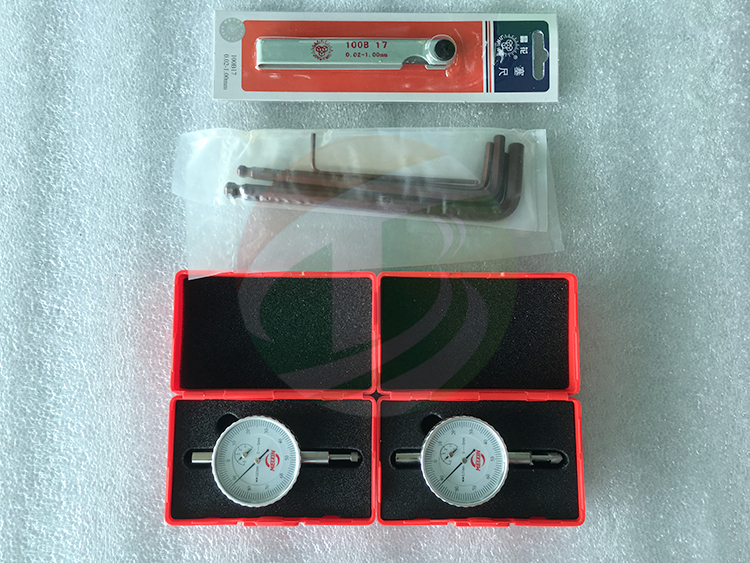

3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum

Roller

Dimensions: 96mm(Dia.) x 100mm(W)

Material: Made from hardened tool steel (HRC > 60)

with Cr electroplated coating. With finish > 0.8

Rolling press accuracy

≤±0.005

Rolling press thickness

0-2mm adjusted with Dial gauge

Rolling press width

Max 100mm

Product Dimensions

350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")

Weight

45kg (100 lbs)


Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable,

compact and precise.

1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property of

the materials. Here are some results from our test:

Electrode

Size

Original

thickness

Finished thickness

LiFePO4

double sides

50mm Width x 260mm Length

0.205mm

0.09mm

LiMn2O4

double sides

50mm Width x 260mm Length

0.205mm

0.09mm

Copper foil + graphite

(single side)

75mm Width x 240mm Length

0.09mm

0.04mm

Sample testing is available upon customer's request


PRODUCT DISPLAY



Manual Rolling Press Machine

Manual Rolling Press MachineManual Rolling Press Machine

Manual Rolling Press Machine

Manual Rolling Pressrolling press machine

Rolling Press


PACKAGE


battery rolling press
