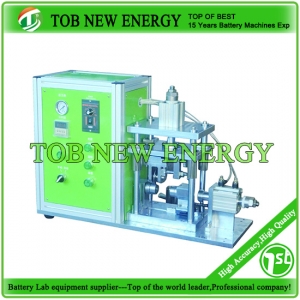

Grooving Machine For Cylinder Cell

Semi-auto grooving machine for Lithium ion cylindrical battery cases grooving.

Brand:
TOB NEW ENERGY
item no.:
TOB-GC650
order(moq):
1set
Payment:
L/C,T/T,Western Union, Paypal
product origin:
China
shipping port:
XIAMEN
Lead Time:
7days

inquiry now

Product Detail

Desk-top Semi-Auto Grooving Machine for Various Cylinder Cell With Customized Die

SPECIFICATIONS

1 TOB-GC650 Semi-auto grooving machine is and desktop grooving machine,

It is used for grooving various cylindrical cell cases including CR123,18650 26650, 32650 cells with customized grooving die.

2 This machine can also be used for aluminum shell capacitor uniform automatic roll groove.

Model	Grooving Machine TOB-GC650
Source voltage	110V-220V AC, 50/60Hz Single Phase
Power	140W
Warranty	One year limited and lifetime support
Suitable battery model	18650 / 26650 / 32650, can be customized
Advantages	1 Customized die for other cylindrical cell types is available according to request 2 Each type of cylinder cell can only be grooved specifically by certain model of this equipment. Please select the type of cylinder cellfor the corresponding grooving die of each cylinder cell type.
Grooving depth	1.2-2.0mm adjustable
Grooving width	1.1-1.5mm
Grooving precision	±0.1mm
Knife life	>100 0000times
Air supply	0.5-0.7MPa
Dimension	600450350mm
Weight	68kg

Product Display

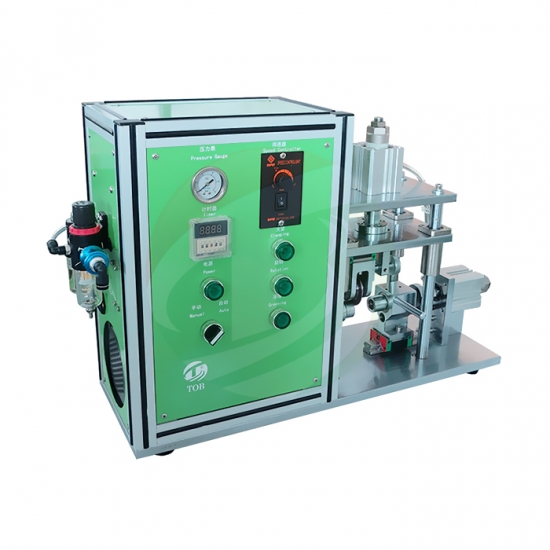

Semi-Auto Grooving Machine

battery Grooving Machine

Grooving Machine

PACKING

Grooving Machine

Email : tob.amy@tobmachine.com

Skype : amywangbest86

Whatsapp/Phone number : +86 181 2071 5609
