4500W Battery Welding Machine For Electrode Sheets 10-60 Layers

TOB-USW4500W ultrasonic metal welding machine is Designed for Lithium battery tab welding with touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.
  • item no.:

    TOB-USW-4500W
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

3000W High Power Battery Welder For Stacked Electrode Sheets 10-60 Layers with Tab Welding



Specifications




TOB-USW4500Wultrasonic metal welding machineis Designed for Lithiumbattery tab weldingwith touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.

The 2600w battery welder can weld stacked electrode with 10-30layers aluminum foil or copper foil with Al tab and Nickel tab, If with bigger battery with layer up to 30layers, can choose the TOB-USW-3000W model, and If need to weld up to 60 layers, please choose TOB-USW-4500W model.


Model

Battery Welding Machine    TOB-USW-4500W

Type

Ultrasonic spot welding machine

Welding ability:

1 10-60 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding.

  Welding point : 4*6, 4*8, 4*10, 4*12 mm customized

2 10-60 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding.

  Welding point : 4*6, 4*8, 4*10, 4*12 mm customized

3 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding.

  Welding point : 4*6, 4*8, 4*10, 4*12mm customized

4 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld.

  Welding point : 4*6, 4*12mm customized

Frequency

24KHZ

Max output power

4500W

Control mode

CPU control

Air supply

≥0.5MPa

Voltage source

110/ 220V 50HZ/60HZ

Humidity

≤48%

Temperature

≤45℃

Warranty

One year limited warranty with lifetime support


PRODUCT DISPLAY


Ultrasonic spot welding machine


Ultrasonic spot welding machine

Weld head area can be customized according to customer's requirements

Ultrasonic spot welding machine weld area

Ni Tab welding with Multi-layers copper foil and Al Tab welding with multi-layers aluminum foil



Touch-screen controller with setting parameters

Welding machine touch-screen

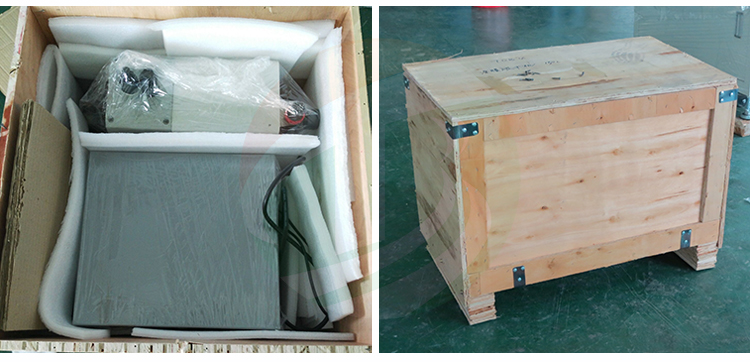

PACKAGE

Ultrasonic spot welding machine Package
